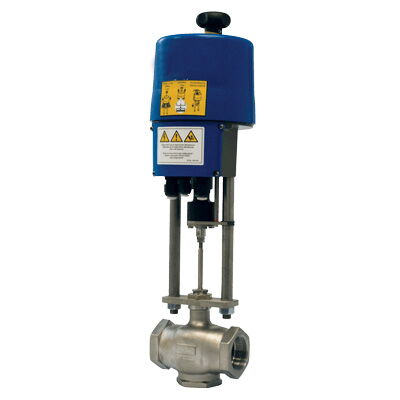

Electric 2-Way Control Valve, A351 CF8M, 1 Inch, 800 LB, NPT
Key Specifications / Features
Model No.: WV-240716-CTV-02 Hits: 8
This Electric Operated 2-Way Control Valve is meticulously crafted for high-pressure applications. It features a 1-inch diameter, rated at Class 800 LB, and is constructed from high-quality Stainless Steel ASTM A351 CF8M for superior corrosion resistance and durability. The valve is equipped with NPT ends and offers a full bore design for unrestricted fluid flow. Designed with a Capacitor Fail Closed mechanism, it ensures safety and reliability in critical operations.
Request a quoteTags
Detail Information
Materials: Stainless Steel, ASTM A351 CF8M
Size: 1 Inch, DN25
Operating Pressure: Class 800 LB, PN130
Weight: 24 lbs
Actuator Type: Electric, Capacitor-Fail Closed
Cv Factors: 10.0
Control Signal: 0-10 V
Valve Port: Full Port
Connection NPT
Trim Style: EP
Packing: Teflon
The 2-way control valve with an Electric Actuator is a durable and user-friendly alternative to the pneumatically actuated unit. With its rapid response times and precise movements, this actuator is suitable for a wide range of applications, including steam-to-water heaters. It is especially ideal for installations where pneumatic lines are not available. The Electric Actuator features either Super Capacitors (EC) or Spring Return (ES), enabling the valve to fail in either the fully-open or fully-closed position in the event of power loss or signal failure.
Features:
• Fast Response: These actuators respond extremely quickly, fully opening or closing the HB Control Valve in approximately 6 seconds, making them ideal for instantaneous and semi-instantaneous water heaters. Typical signal response time is 2-3 seconds.
• Fail-Safe Mode: Super capacitors drive the valve fully closed or open in the event of power loss to the actuator, replacing common backups like springs with limited thrust or batteries with limited lifespans.
• High Stem Thrust: Ensures the close-off of all HB valve sizes against the full rating of 300 psig.
• Integral Positioner: Accepts 4/0-20mA or 2/0-10 VDC control signals, eliminating the need for a separate I/P transducer.
• Field-Configurable: Using a PC, the actuator can be field-configured for minimum closing position, maximum opening position, fail-open, fail-close, or stay-put failure modes in the event of power loss.
