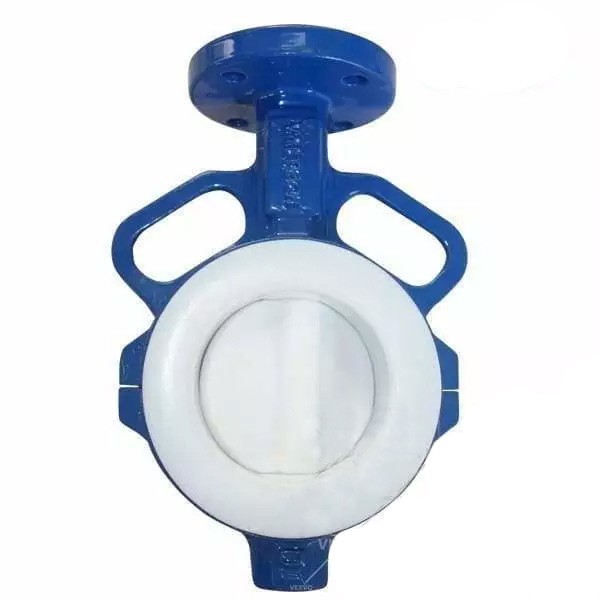

PTFE Lined Butterfly Valve, Cast Iron GGG40, 3 Inch, 150 LB
Key Specifications / Features
Model No.: WV-240105-TOBFV-01 Hits: 4
Precision-engineered for optimal performance, our Wafer Style PTFE Lined Butterfly Valve is a superior creation. Constructed with Cast Iron GGG40 and adhering to API 609, ASTM, BS, DIN, ISO, JIS standards, this valve is a robust choice. Featuring a 3-inch size, Class 150 LB rating, and a triple offset design with a soft backrest, it excels in fluid control applications.
Request a quoteTags:
Detail Information
Design Standard: API 609, ASTM, BS, DIN, ISO, JIS
Body Material: GGG40
Nominal Diameter: 3 Inch, DN80, 80MM
Pressure: PN10, Class 150 LB
End Connection: Wafer Type
Face To Face: ASTM, BS, DIN, ISO, JIS
Test And Inspection: API 598
Feature: PTFE Lined, Triple Offset, Concentric Lining design, Lockable Lever, Site maintenance, Ease of automation, Positive tight shut-off, Optional top flanges to ISO 5211, Qualified for both gaseous and liquid services, Broad line of body and trim materials for a variety of medium service,
Product Range
Materials: Carbon, stainless steel, duplex stainless steel, alloy and other special materials, Cast Carbon Steel, Low Temp. Carbon Steel, Stainless Steel, Alloy Steel, duplex steel, etc.
Design: ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN 3202
Temperature: -20 ℃ to 150 ℃
Pressure Ratings: ANSI 150 LB, PN10, PN16
Size Ranges: 2 Inch to 24 Inch, -50mm to 600mm (Larger sizes upon request)
Body Lining: PTFE, FEP, PFA, etc.
Ends Connections: Wafer, Lugged, Double Flanged
Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic
Body Material: GGG40
Nominal Diameter: 3 Inch, DN80, 80MM
Pressure: PN10, Class 150 LB
End Connection: Wafer Type
Face To Face: ASTM, BS, DIN, ISO, JIS
Test And Inspection: API 598
Feature: PTFE Lined, Triple Offset, Concentric Lining design, Lockable Lever, Site maintenance, Ease of automation, Positive tight shut-off, Optional top flanges to ISO 5211, Qualified for both gaseous and liquid services, Broad line of body and trim materials for a variety of medium service,
Product Range
Materials: Carbon, stainless steel, duplex stainless steel, alloy and other special materials, Cast Carbon Steel, Low Temp. Carbon Steel, Stainless Steel, Alloy Steel, duplex steel, etc.
Design: ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN 3202
Temperature: -20 ℃ to 150 ℃
Pressure Ratings: ANSI 150 LB, PN10, PN16
Size Ranges: 2 Inch to 24 Inch, -50mm to 600mm (Larger sizes upon request)
Body Lining: PTFE, FEP, PFA, etc.
Ends Connections: Wafer, Lugged, Double Flanged
Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic
