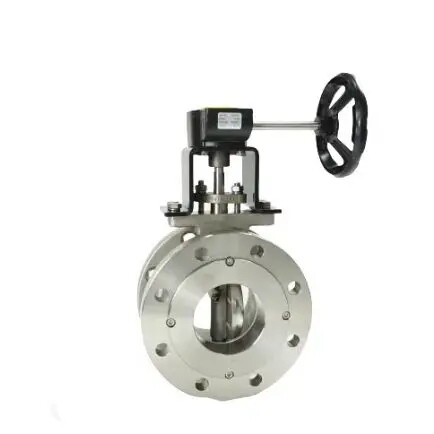

API 609 Butterfly Valve, ASTM A890 4A, 3 Inch, Class 150 LB
Key Specifications / Features
Model No.: WV-240408-TOBTV-03
Hits: 52
Providing high-quality API 609 Butterfly Valves, our supplier offers options including UNS S31803, ASTM A182 F51, and ASTM A890 4A materials. With a 3-inch size and Class 150 LB rating, these valves feature a Triple Eccentric design and undergo API 598 testing for reliability. Available in DN80 size, PN20 rating, and Flange End configuration.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Triple Eccentric Butterfly Valve, FLANGE.
Design: API 609.
Body: UNS S31803, ASTM A182 F51, ASTM A890 4A
Nominal size: 3 Inch.
Nominal class: 150 LB.
End Connection: FLANGE.
Face to face: API 609.
Test and inspection: API 598.
Product Range:
Body material: Stainless steel.
Normal diameter: 2 - 24 Inch (DN50 - DN600).
End connection: Flanged, WAFER, LUG.
Pressure range: class 150 - 600 LB (PN16 - PN100).
Working temperature: -29℃ - +300℃.
Design: API 609.
Body: UNS S31803, ASTM A182 F51, ASTM A890 4A
Nominal size: 3 Inch.
Nominal class: 150 LB.
End Connection: FLANGE.
Face to face: API 609.
Test and inspection: API 598.
Product Range:
Body material: Stainless steel.
Normal diameter: 2 - 24 Inch (DN50 - DN600).
End connection: Flanged, WAFER, LUG.
Pressure range: class 150 - 600 LB (PN16 - PN100).
Working temperature: -29℃ - +300℃.
| Product | Triple Eccentric Butterfly Valve. |
| Nominal diameter | 2 Inch - 24 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 600 LB. |
| Material | Duplex Stainless steel. |
| Design standard | API 609. |
| Face to face | API 609. |
| Connection end | Flange, WAFER, LUG. |
| Test standard | API 598. |
| Package | Plywood |
| Application | water, oil and gas. |
