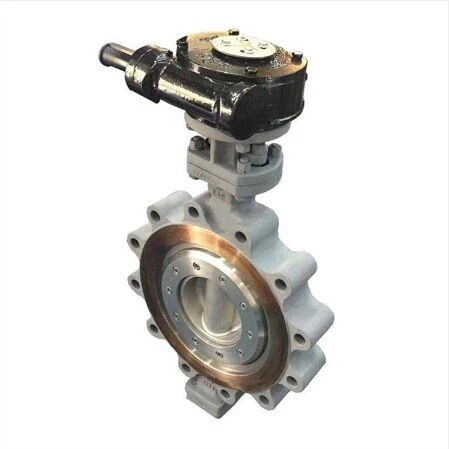

Triple Offset Butterfly Valve, ASTM A351 CF3M, 3 Inch, 150 LB
Key Specifications / Features
Model No.: WV-240413-TOBFV-02 Hits: 11
A leading manufacturer of triple offset butterfly valves, crafting precision valves from stainless steel ASTM A351 CF3M. These valves are 3 inches in size, Class 150 LB rated, and adhere to API 609 standards. With both flange and lug end options, they are suitable for DN80 sizing and PN20 pressure rating, tested to API 598 standards.
Request a quoteTags
Detail Information
Triple Eccentric Butterfly Valve, LUG.
Standard: API 609.
Material: ASTM A351 CF3M
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
End Connection: LUG.
Face to face: APPI 609.
Test and inspection: API 598.
Product Range:
Body material: Stainless steel.
Normal diameter: 2 - 32 Inch (DN50 - DN800).
End connection: Flanged, WAFER, LUG.
Pressure range: Class 150 - 600 LB (PN16 - PN100).
Working temperature: -29℃ - +300℃.
Technical parameters and characteristics
Standard: API 609.
Material: ASTM A351 CF3M
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
End Connection: LUG.
Face to face: APPI 609.
Test and inspection: API 598.
Product Range:
Body material: Stainless steel.
Normal diameter: 2 - 32 Inch (DN50 - DN800).
End connection: Flanged, WAFER, LUG.
Pressure range: Class 150 - 600 LB (PN16 - PN100).
Working temperature: -29℃ - +300℃.
Technical parameters and characteristics
| Product | Triple Eccentric Butterfly Valve. |
| Nominal diameter | 2 Inch - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 600 LB. |
| Material | Stainless steel. |
| Design standard | API 609. |
| Face to face | API 609. |
| Connection end | Flange, WAFER, LUG. |
| Test standard | API 598. |
| Package | Plywood |
| Application | water, oil and gas. |
