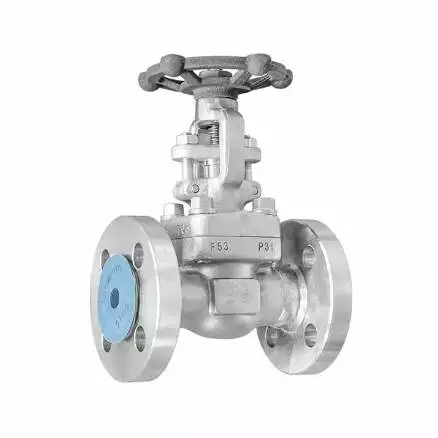

ISO 15761 Gate Valve, ASTM A182 F53, DN25, PN25, RF, OS & Y
Key Specifications / Features
Model No.: WV-231219-AGV-01 Hits: 192
Explore our exclusive collection of Super Duplex Stainless Steel Gate Valves, meticulously crafted to meet the highest standards. Available in DN25, 1 Inch, PN50, and Class 300 LB specifications, these valves boast exceptional strength and durability, thanks to their ASTM A182 F53 construction. Fully compliant with GB/T 12234 and ISO 15761 standards, our gate valves are engineered for reliability and performance.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Valve description:
Gate valve, RF, RISING STEM.
Design: GB/T 12234, ISO 15761.
Body: ASTM A182 F53
Nominal size: DN25.
Nominal class: PN25.
End Connection: FLANGED.
Face to face: EN 558
Test and inspection: API 598.
Product Range:
Body material: Stainless steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN250).
Working temperature: -196℃~650℃.
Technical parameters and characteristics
Gate valve, RF, RISING STEM.
Design: GB/T 12234, ISO 15761.
Body: ASTM A182 F53
Nominal size: DN25.
Nominal class: PN25.
End Connection: FLANGED.
Face to face: EN 558
Test and inspection: API 598.
Product Range:
Body material: Stainless steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN250).
Working temperature: -196℃~650℃.
Technical parameters and characteristics
| Product | Gate valve. |
| Nominal diameter | 1/2 Inch - 2 Inch. |
| Design temp. | Down to -196℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Duplex Stainless steel. |
| Design standard | GB/T 12234,ISO 15761 |
| Face to face | EN558,ASME B16.10, GB/T 12221. |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
