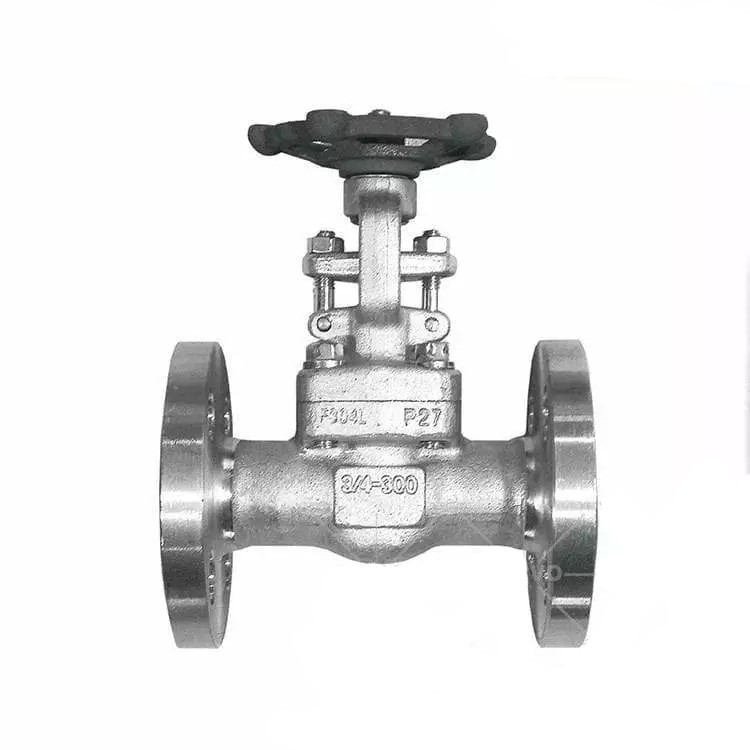

BS 5352 Gate Valve, ASTM A182 F304L, 3/4 Inch, Class 300 LB
Key Specifications / Features
Model No.: WV-231225-AGV-12
Hits: 20
Welcome to our ASTM A182 F304L Gate Valve Plant, where precision and quality converge in valve manufacturing. Our gate valve, meticulously crafted with a body made from ASTM A350 LF2 material, adheres to industry standards such as API 602 and BS 5352. The Gasket Seal ensures secure operation, and its design for easy disassembly and assembly facilitates maintenance and minimizes downtime.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Name: Forged Steel Gate Valve
Media: Oli, Gas, Water
Size: 3/4 Inch, DN20
Pressure: Class 300 LB, PN50
Material: ASTM A182 F304L Stainless Steel
End Connection: Flanged End
Temperature Of Media: -54℃ To 232℃
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 150-800 LB, 1500 LB, 2500 LB
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
Media: Oli, Gas, Water
Size: 3/4 Inch, DN20
Pressure: Class 300 LB, PN50
Material: ASTM A182 F304L Stainless Steel
End Connection: Flanged End
Temperature Of Media: -54℃ To 232℃
| Item | A182 F304 Stainless Steel Gate Valve |
| Certification | CE,TS,ISO9001,ISO14001,ISO18001,API |
| Connection form | Integral RF Flanged |
| Body material | Low-Temperature A350 LF2 |
| Seal material | Gasket |
| Feature | Easy disassembly and assembly |
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 150-800 LB, 1500 LB, 2500 LB
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
