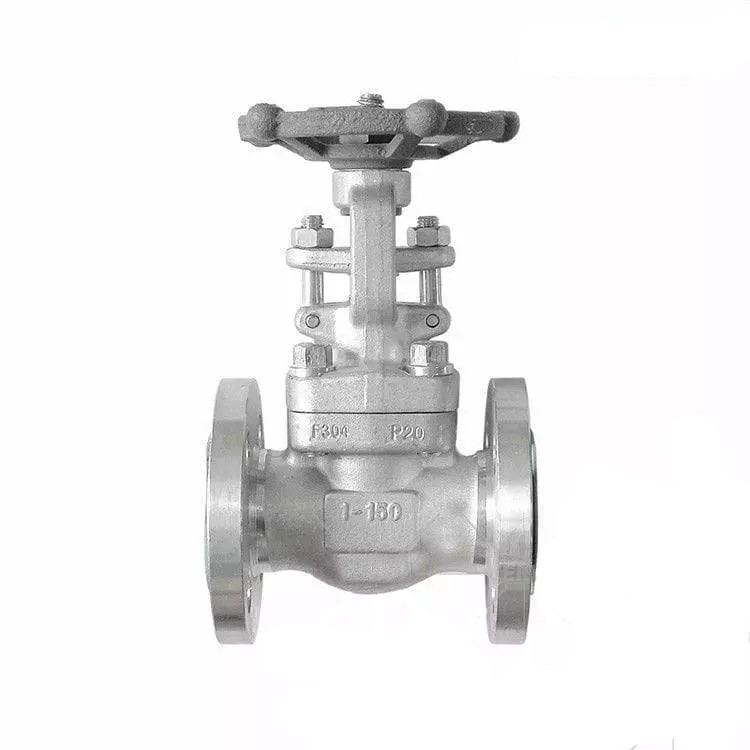

API 602 Monolithic Gate Valve, ASTM A182 F304, 1 IN, 150 LB

API 602 Monolithic Gate Valve, ASTM A182 F304, 1 IN, 150 LB

Key Specifications / Features

Model No.: WV-231219-AGV-27 Hits: 2

As a leading Monolithic Gate Valve Manufacturer, we pride ourselves on precision and reliability. Crafted from high-quality Forged Stainless Steel ASTM A182 F304, our 1-inch valves adhere to API 602, BS 5352, and ISO 15761 standards, ensuring superior performance. Designed for Class 150 LB applications, these gate valves feature RF (Raised Face) Flanged ends for secure connections.

Request a quote

Detail Information

Name: Forged Gate Valve
Media: Oli, Gas, Water
Size: 1 Inch, DN25
Pressure: Class 150 LB, PN20
Material: ASTM A182 F304
End Connection: RF Flanged
Operation: Handwheel
Temperature Of Media: -54℃ - 232℃
Model number Z41Y-150LB
Item Gate Valve
Certification CE,TS,ISO9001,ISO14001,ISO18001
Connection form Flanged
Body material Stainless Steel
Seal material Gasket
Feature Easy disassembly and assembly

Product Range

Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 150 - 800 LB, 1500 LB, 2500 LB
Standard: API 602, BS 5352, ISO 15761, ASME B16.34, GOST, JIS, DIN
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Material: Forged Steel, Stainless Steel
