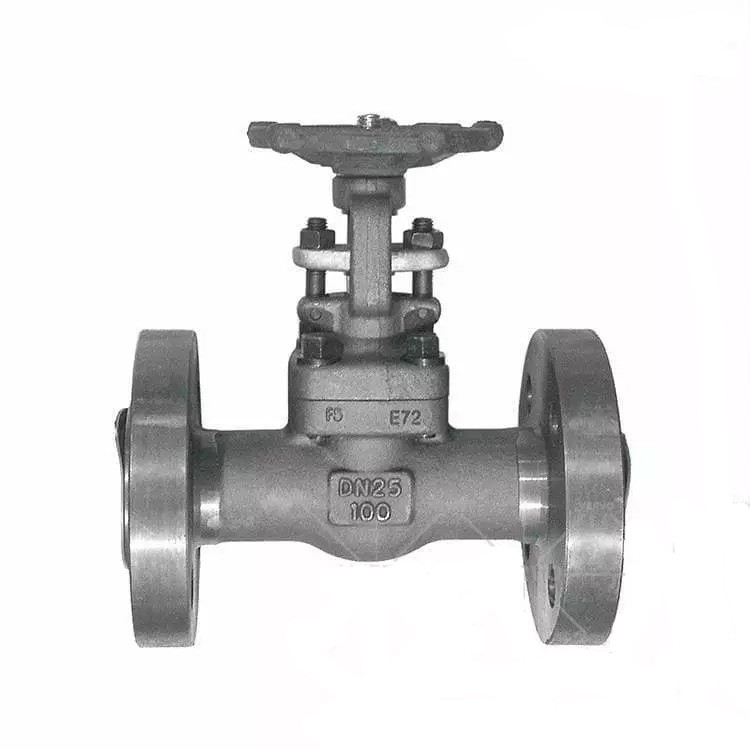

API 602 Gate Valve, ASTM A182 F5, 1 Inch, Class 600 LB, RF
Key Specifications / Features
Model No.: WV-231219-AGV-11 Hits: 14
As an experienced API 602 Gate Valve fabricator, we specialize in precision-engineered solutions for your fluid control needs. Our Forged Steel valves, crafted from ASTM A182 F5 material, are designed to excel in demanding applications. With a 1 Inch size and Class 600 LB rating, these valves offer reliable performance. Featuring RF End for secure connections and a Gasket Seal for enhanced sealing, our valves are engineered for ease of disassembly and assembly.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Name: Forged Steel Gate Valve
Size: DN25, 1 Inch
Pressure: PN100, Class 600 LB
Material: ASTM A182 F5
Standard: API 602, DIN, Gost
End Connection: RF Flanged End
Size: DN25, 1 Inch
Pressure: PN100, Class 600 LB
Material: ASTM A182 F5
Standard: API 602, DIN, Gost
End Connection: RF Flanged End
| Model number | Z41Y-PN100-DN25 |
| Item | Forged steel A182 F5 Gate Valve |
| Certification | CE,TS,ISO9001,ISO14001,ISO18001,API |
| Connection form | Flanged |
| Body material | Forged Steel A182 F5 |
| Seal material | Gasket |
| Feature | Easy disassembly and assembly |
