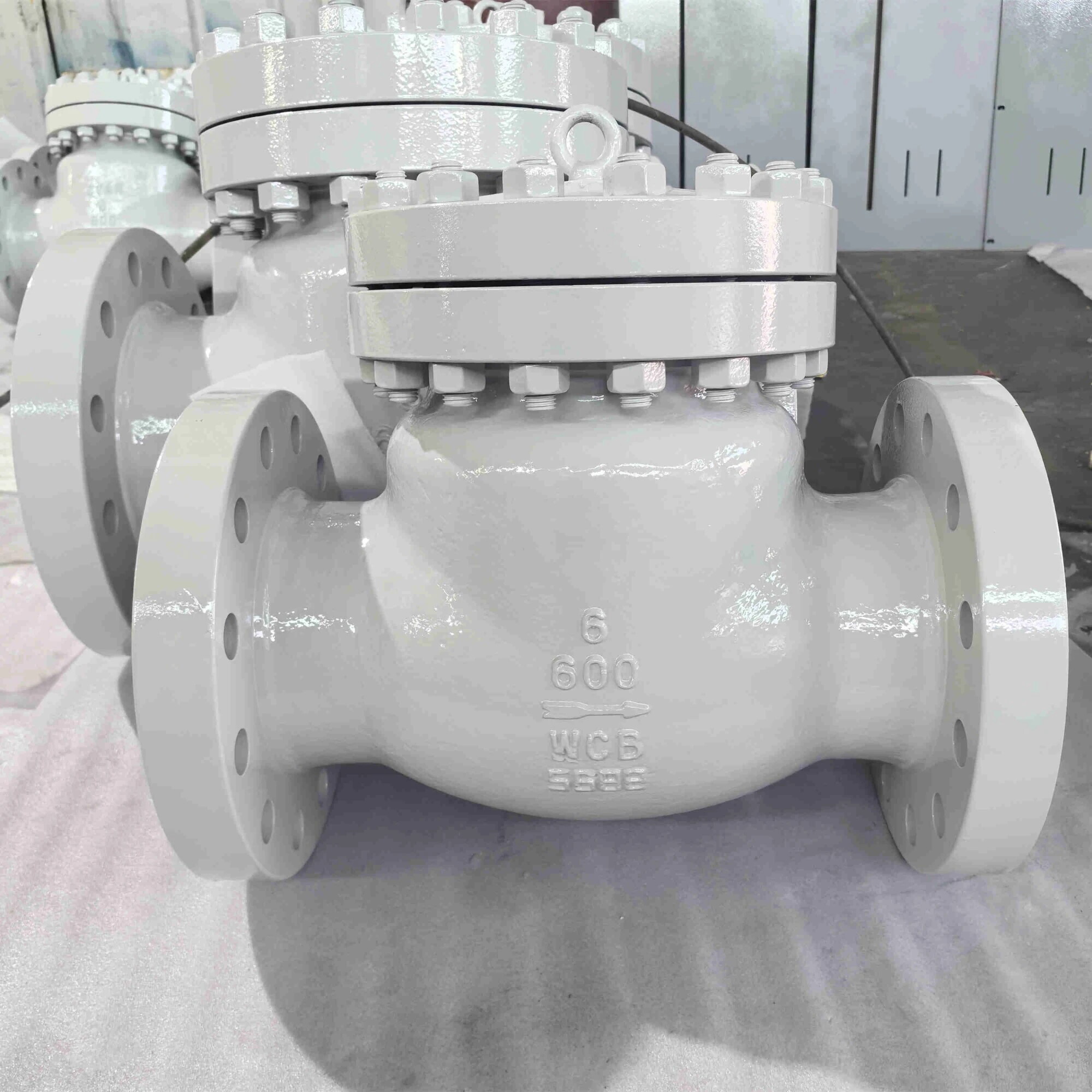

Integral Flange Check Valve, BS 1868, A216 WCB, 6 IN, 600 LB
Key Specifications / Features
Model No.: WV-240402-ASCV-02 Hits: 25
Welcome to our esteemed BS 1868 Swing Check Valve Factory, where precision meets reliability. Our swing check valve, forged from ASTM A216 WCB steel, stands as a testament to durability and performance. With a 6-inch size and a robust Class 600 LB rating, it ensures optimal flow regulation in demanding environments.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Swing Check Valve, NPS 6, 600 LB, WCB, Integral Flange
Design: BS 1868.
Material: ASTM A216 WCB
Size: 6 Inch, DN150
Pressure: Class 600 LB, PN100
End Connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: CARBON Steel.
Normal diameter: 2 - 20 Inch (DN15 - DN500).
End connection: BW, FLANGE.
Pressure range: Class 150 - 600 LB (PN16 - PN40).
Working temperature: -29℃ - +429℃.
Design: BS 1868.
Material: ASTM A216 WCB
Size: 6 Inch, DN150
Pressure: Class 600 LB, PN100
End Connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: CARBON Steel.
Normal diameter: 2 - 20 Inch (DN15 - DN500).
End connection: BW, FLANGE.
Pressure range: Class 150 - 600 LB (PN16 - PN40).
Working temperature: -29℃ - +429℃.
| Product | SWING Check Valve. |
| Nominal diameter | 2 Inch - 20 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 600 LB. |
| Material | CARBON Steel. |
| Design standard | BS 1868. |
| Face to face | ASME B16.10 |
| Connection end | BW, FLANGE |
| Test standard | API 598. |
| Package | Plywood |
| Application | water, oil, and gas. |
