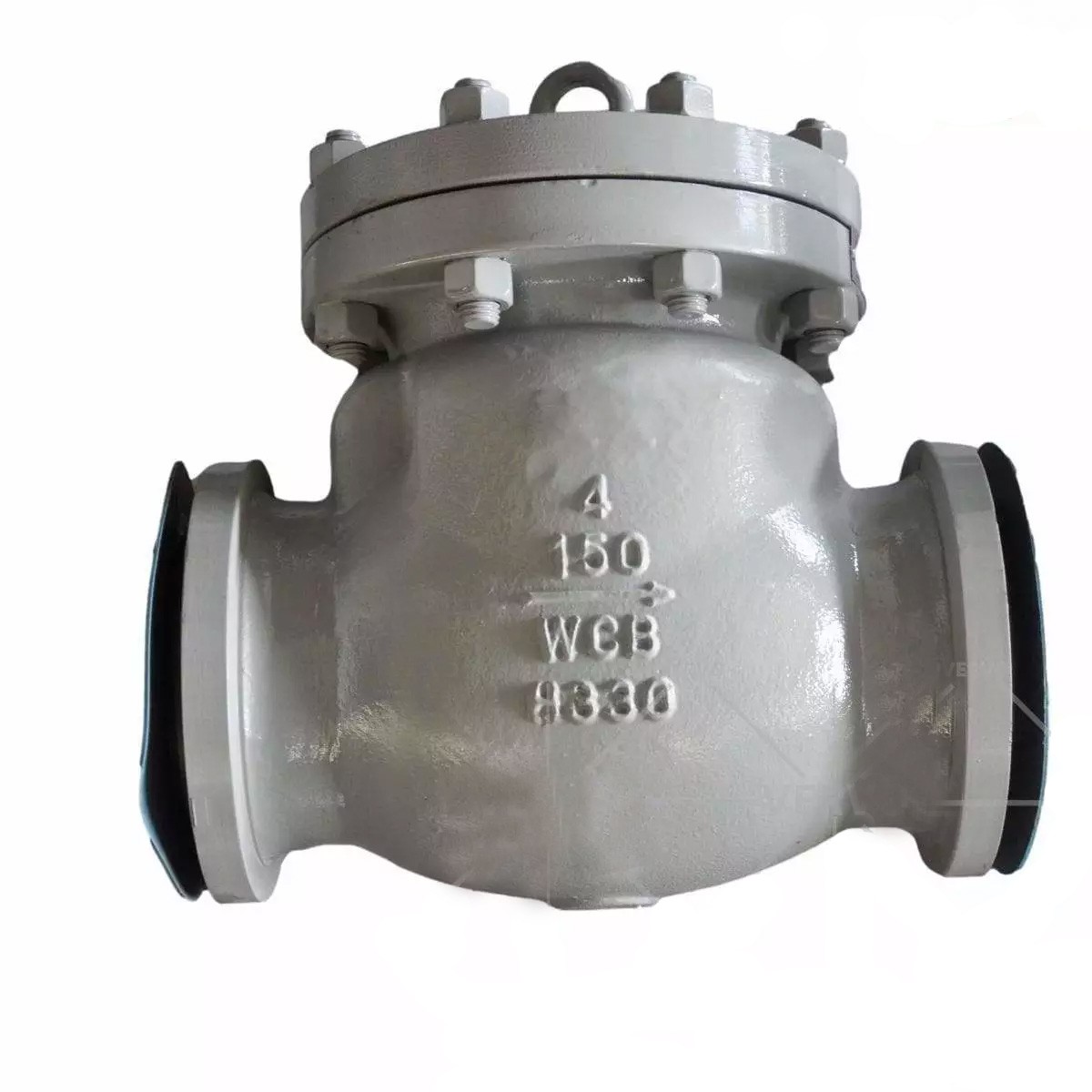

Swing Check Valve, API 6D, ASTM A216 WCB, 4 Inch, 150 LB, RF
Key Specifications / Features
Model No.: WV-240104-ASCV-04 Hits: 81
As a trusted provider of industrial valves, we present the API 6D and BS 1868 Swing Check Valve. This high-quality valve, with a 4-inch (DN100) size, operates at Class 150 LB and PN20 pressure. Crafted from robust Carbon Steel ASTM A216 WCB, it features a convenient Raise Flanged End for easy disassembly and maintenance.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design Standard: API 6D, BS 1868
Body Material: Carbon Steel A216 WCB
Nominal Diameter: 4INCH, DN100
Pressure: Class 150 LB, PN20
End Connection: RF FLANGE
Face To Face: ASME B16.10
Test And Inspection: API 598
Product Range
Size: NPS 2 to NPS 36 IN
Prressure: Class 150-2500 LB
Design: API 6D, BS 1868
Face-to-face: ASME B16.10
Body Material: Carbon Steel A216 WCB
Nominal Diameter: 4INCH, DN100
Pressure: Class 150 LB, PN20
End Connection: RF FLANGE
Face To Face: ASME B16.10
Test And Inspection: API 598
| Item | 4Inch Swing Check Valve |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Port Size | 4INCH/DN100 |
| Structure type | Swing Check Valve |
| Pressure | 150LB |
| Temperature | -29~429Degree |
| Connection form | Raise Flanged |
| Material | Carbon Steel A216 WCB |
| Feature | Easy disassembly |
Product Range
Size: NPS 2 to NPS 36 IN
Prressure: Class 150-2500 LB
Design: API 6D, BS 1868
Face-to-face: ASME B16.10
