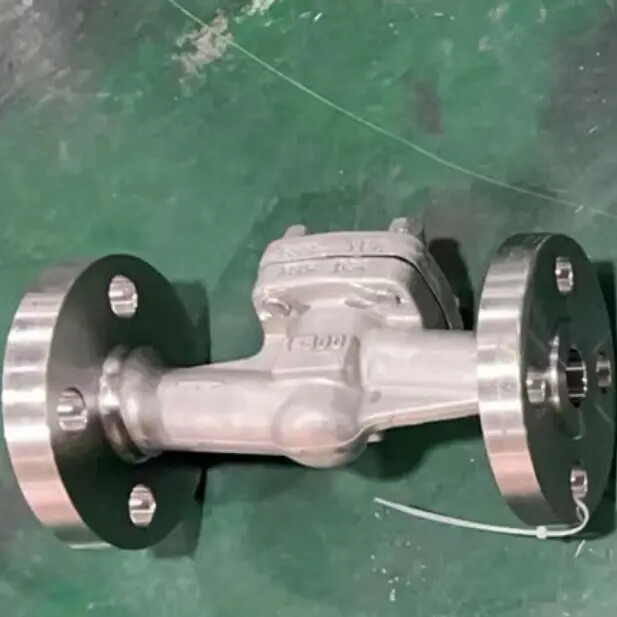

API 602 Lift Check Valve, ASTM A182 F316L, 1 Inch, 300 LB
Key Specifications / Features
Model No.: WV-240402-ASCV-03 Hits: 3
Welcome to our esteemed Stainless Steel Lift Check Valve Plant, where precision engineering meets unparalleled quality. Our lift check valve, meticulously crafted from ASTM A182 F316L stainless steel, ensures exceptional durability and corrosion resistance. With a compact 1-inch design and a robust Class 300 LB rating, it offers reliable flow control in a variety of applications.
Request a quoteTags:
Detail Information
LIFT Check Valve, stainless steel, NPS 1, 300 LB, F316L, INTEGRAL FLANGE.
Design: API 602.
Material: ASTM A182 F316L
Size: 1 Inch, DN25
Pressure: Class 300 LB, PN50
End Connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Stainless Steel.
Normal diameter: 1/2 - 20 Inch (DN15 - DN500).
End connection: BW, FLANGE.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Design: API 602.
Material: ASTM A182 F316L
Size: 1 Inch, DN25
Pressure: Class 300 LB, PN50
End Connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Stainless Steel.
Normal diameter: 1/2 - 20 Inch (DN15 - DN500).
End connection: BW, FLANGE.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
