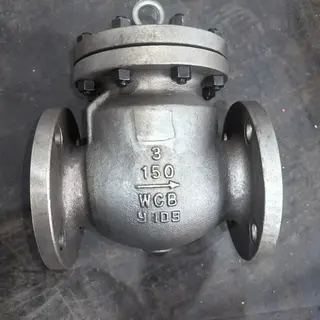

ASTM A216 WCB Swing Check Valve, BS 1868, 3 Inch, 150 LB, RF
Key Specifications / Features
Model No.: WV-240323-ASCV-02
Hits: 73
Welcome to our Carbon Steel Swing Check Valve Mill located in China. Our valves, manufactured from ASTM A216 WCB, boast a 3-inch size and a Class 150 LB rating, adhering to BS 1868 standards. Featuring Raise Flange End connections and an Integral Seat design, these valves ensure optimal performance and reliability. With DN80 size and PN20 pressure rating, they are suitable for various industrial applications.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Design: BS 1868.
Body: ASTM A216 WCB
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
End Connection: Flange
Face to Face: ASME B16.10.
Test and inspection: API 598
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2-20 Inch, DN15 - DN500
Pressure range: Class 150 - 2500 LB, PN16 - PN420
Working temperature: -29℃ - +425℃.
End connection: BW, Flanged.
Body: ASTM A216 WCB
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
End Connection: Flange
Face to Face: ASME B16.10.
Test and inspection: API 598
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2-20 Inch, DN15 - DN500
Pressure range: Class 150 - 2500 LB, PN16 - PN420
Working temperature: -29℃ - +425℃.
End connection: BW, Flanged.
| Product | Swing Check Valve. |
| Nominal diameter | 1/2 Inch - 20 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | BS 1868. |
| Face to face | ASME B16.10. |
| Connection end | BW, Flanged (RTJ, RF). |
| Test standard | API 598. |
| Package | Plywood |
| Application | water, oil and gas. |
