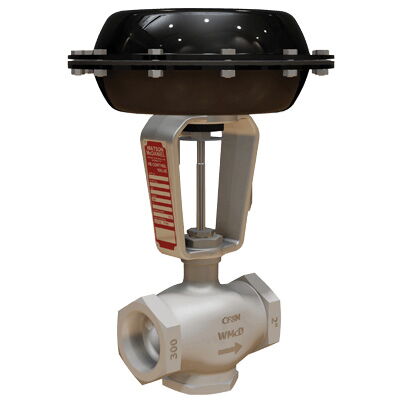

Stainless Steel Two-Way Control Valve, Pneumatic, 1/2 Inch
Key Specifications / Features
Model No.: WV-240716-CTV-01 Hits: 8
Introducing our high-performance Two-Way Control Valve, featuring an air-to-open type pneumatic actuator for precise control. This valve is constructed from durable stainless steel, ensuring longevity and resistance to corrosion. It comes in a 1/2 inch size with a Class 300 LB rating and NPT connection for easy installation. The full port design allows for maximum flow efficiency.
Request a quoteTags
Detail Information
Materials: Stainless Steel
Size: 1/2 Inch, DN15
Operating Pressure: Class 300 LB, PN50
Weight: 21 lbs
Actuator Type: Pneumatic, Air-to-Open
Valve Port: Full Port
Connection NPT
Trim Style: EP
Packing: Teflon

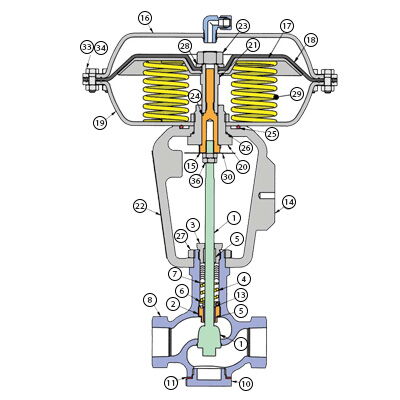

Stainless Steel 2-Way Control Valves are designed to endure the demanding conditions of steam service and are also suitable for air and water applications. These valves offer a cost-effective alternative to those with bronze, cast iron, or cast steel bodies. The standard configuration features an equal percentage flow characteristic, metal-to-metal seating, spring-loaded Teflon V-ring stem packing, and a Pneumatic Actuator.

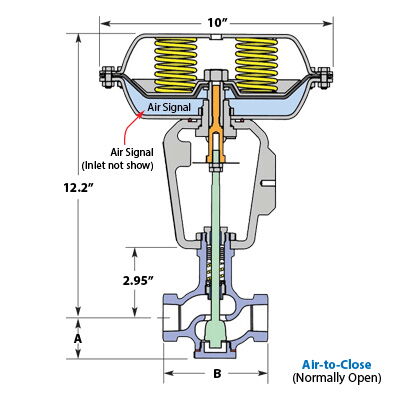

The actuator can be set up for either Air-to-Open (Normally Closed) or Air-to-Close (Normally Open) operation, with the flexibility to be reconfigured in the field if needed.
It's crucial to ensure that the valve's maximum close-off pressure exceeds the inlet pressure. This is necessary to ensure the valve assembly can overcome the forces generated by the fluid pressure within the valve body, allowing the valve to open and close fully and effectively.
Size: 1/2 Inch, DN15
Operating Pressure: Class 300 LB, PN50
Weight: 21 lbs
Actuator Type: Pneumatic, Air-to-Open
Valve Port: Full Port
Connection NPT
Trim Style: EP
Packing: Teflon
Stainless Steel 2-Way Control Valves are designed to endure the demanding conditions of steam service and are also suitable for air and water applications. These valves offer a cost-effective alternative to those with bronze, cast iron, or cast steel bodies. The standard configuration features an equal percentage flow characteristic, metal-to-metal seating, spring-loaded Teflon V-ring stem packing, and a Pneumatic Actuator.
The actuator can be set up for either Air-to-Open (Normally Closed) or Air-to-Close (Normally Open) operation, with the flexibility to be reconfigured in the field if needed.
It's crucial to ensure that the valve's maximum close-off pressure exceeds the inlet pressure. This is necessary to ensure the valve assembly can overcome the forces generated by the fluid pressure within the valve body, allowing the valve to open and close fully and effectively.
