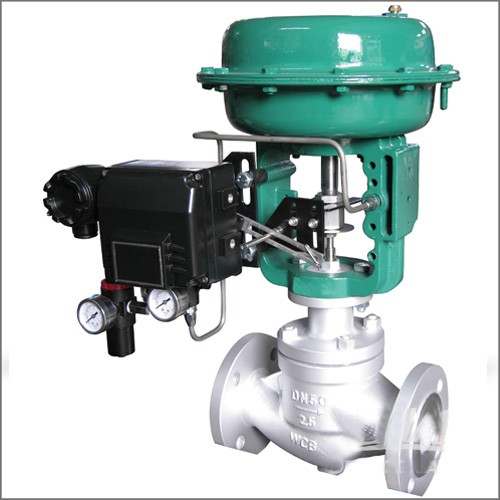

DIN 3356 Pneumatic Control Valve, DN50, PN25, ASTM A216 WCB
Key Specifications / Features
Model No.: WV-240124-CTV-11 Hits: 1
As a renowned maker of carbon steel control valves, we specialize in precision engineering to meet diverse industrial needs. Our valves, crafted from ASTM A216 WCB, are designed for optimal performance. With a nominal size of DN50 (2 inches), these valves adhere to PN25 and Class 300 LB standards, ensuring versatility in various applications.
Request a quoteTags:
Detail Information
Design standard: DIN 3356.
Body material: ASTM A216 WCB.
Nominal diameter: DN50, 2 Inch.
Pressure: PN25, Class 300 LB.
End connection: RF.
Face to face: EN 558-1.
Working temperature: -29℃ - +425℃.
Mode of operation: Pneumatic actuator.
Test and inspection: DIN 3230, EN 12266-1.
Product Range:
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 3/4 - 16 Inch (DN20 - DN400).
End connection: BW, Flanged.
Pressure range: Class 150 LB - 2500 LB(PN16 - PN420).
Operation: Electric actuator, Pneumatic actuator, Electrohydraulic actuator.
Working temperature: -196℃ - +570℃.
Body material: ASTM A216 WCB.
Nominal diameter: DN50, 2 Inch.
Pressure: PN25, Class 300 LB.
End connection: RF.
Face to face: EN 558-1.
Working temperature: -29℃ - +425℃.
Mode of operation: Pneumatic actuator.
Test and inspection: DIN 3230, EN 12266-1.
Product Range:
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 3/4 - 16 Inch (DN20 - DN400).
End connection: BW, Flanged.
Pressure range: Class 150 LB - 2500 LB(PN16 - PN420).
Operation: Electric actuator, Pneumatic actuator, Electrohydraulic actuator.
Working temperature: -196℃ - +570℃.
