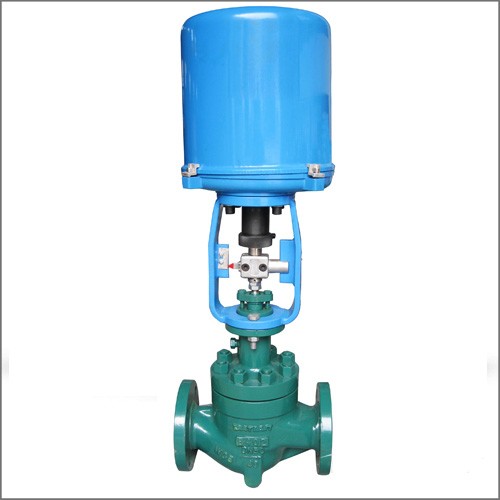

DIN 3356 Electric Control Valve, ASTM A216 WCB, DN50, PN40
Key Specifications / Features
Model No.: WV-240124-CTV-09 Hits: 3
Welcome to our cutting-edge DIN 3356 control valve mill, where precision meets innovation. Our valves, meticulously crafted from ASTM A216 WCB carbon steel, are designed for optimal performance in industrial applications. Operated by electric actuators, these valves provide efficient and automated control in your systems.
Request a quoteTags:
Detail Information
Design standard: DIN 3356.
Body material: ASTM A216 WCB.
Nominal diameter: DN50, 2 Inch.
Pressure: PN40, Class 300 LB.
End connection: RF.
Face to face: EN 558-1.
Working temperature: -29℃ - +425℃.
Mode of operation: Electric actuator.
Test and inspection: DIN 3230, EN 12266-1.
Product Range:
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 3/4 Inch - 16 Inch (DN20 - DN400).
End connection: BW, Flanged.
Pressure range: Class 150 LB - 2500 LB (PN16 - PN420).
Operation: Electric actuator, Pneumatic actuator, Electrohydraulic actuator.
Working temperature: -196℃ - +570℃.
Body material: ASTM A216 WCB.
Nominal diameter: DN50, 2 Inch.
Pressure: PN40, Class 300 LB.
End connection: RF.
Face to face: EN 558-1.
Working temperature: -29℃ - +425℃.
Mode of operation: Electric actuator.
Test and inspection: DIN 3230, EN 12266-1.
Product Range:
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 3/4 Inch - 16 Inch (DN20 - DN400).
End connection: BW, Flanged.
Pressure range: Class 150 LB - 2500 LB (PN16 - PN420).
Operation: Electric actuator, Pneumatic actuator, Electrohydraulic actuator.
Working temperature: -196℃ - +570℃.
