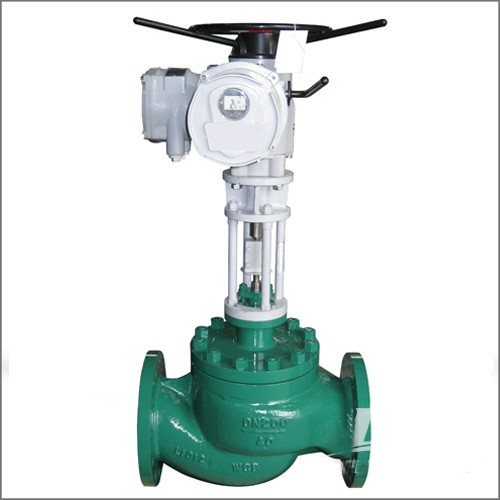

Electric Actuated Control Valve, DIN 3356, WCB, DN200, PN40
Key Specifications / Features
Model No.: WV-240124-CTV-14 Hits: 5
As a trusted provider of electric actuated control valves, we specialize in delivering precision-engineered solutions for diverse industrial applications. Our valves, constructed from high-quality carbon steel ASTM A216 WCB, adhere to DIN 3356 standards, ensuring reliability and durability.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design Standard: DIN 3356.
Body Material: ASTM A216 WCB.
Nominal Diameter: DN200, 8 Inch.
Pressure: PN40, Class 300 LB.
End Connection: RF.
Face to Face: EN 558-1.
Working Temperature: -29℃ - +425℃.
Mode of Operation: Electric Actuator.
Test and Inspection: DIN 3230, EN 12266-1.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 3/4 Inch - 16 Inch (DN20 - DN400).
End Connection: BW, Flanged.
Pressure Range: Class 150 LB - 2500 LB (PN16 - PN420).
Operation: Electric Actuator, Pneumatic Actuator, Electrohydraulic Actuator.
Working Temperature: -196℃ - +570℃.
Body Material: ASTM A216 WCB.
Nominal Diameter: DN200, 8 Inch.
Pressure: PN40, Class 300 LB.
End Connection: RF.
Face to Face: EN 558-1.
Working Temperature: -29℃ - +425℃.
Mode of Operation: Electric Actuator.
Test and Inspection: DIN 3230, EN 12266-1.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 3/4 Inch - 16 Inch (DN20 - DN400).
End Connection: BW, Flanged.
Pressure Range: Class 150 LB - 2500 LB (PN16 - PN420).
Operation: Electric Actuator, Pneumatic Actuator, Electrohydraulic Actuator.
Working Temperature: -196℃ - +570℃.
