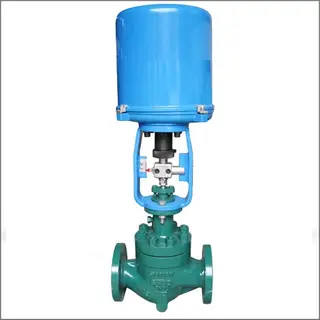

ASTM A351 CF8 Control Valve, DIN 3356, DN40, PN16, RF End
Key Specifications / Features
Model No.: WV-240124-CTV-17
Hits: 36
As a reliable supplier of stainless steel control valves, we specialize in delivering high-quality solutions for diverse industrial applications. Our valves, constructed from ASTM A351 CF8 stainless steel, are engineered to provide optimal performance and corrosion resistance. Featuring a DN40 size (1-1/2 inches) and PN16 rating, these valves are designed for versatility in various operational environments.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Design Standard: DIN 3356.
Body Material: ASTM A351 CF8.
Nominal Diameter: DN40, 1-1/2 Inch.
Pressure: PN16, Class 150 LB.
End Connection: RF.
Face to Face: EN 558-1.
Working Temperature: -46℃ - +560℃.
Mode of Operation: Electric Actuator.
Test and Inspection: DIN 3230, EN 12266-1.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 3/4 Inch - 16 Inch (DN20 - DN400).
End Connection: BW, Flanged.
Pressure Range: Class 150 LB - 2500 LB (PN16 - PN420).
Operation: Electric Actuator, Pneumatic Actuator, Electrohydraulic Actuator.
Working Temperature: -196℃ - +570℃.
Body Material: ASTM A351 CF8.
Nominal Diameter: DN40, 1-1/2 Inch.
Pressure: PN16, Class 150 LB.
End Connection: RF.
Face to Face: EN 558-1.
Working Temperature: -46℃ - +560℃.
Mode of Operation: Electric Actuator.
Test and Inspection: DIN 3230, EN 12266-1.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 3/4 Inch - 16 Inch (DN20 - DN400).
End Connection: BW, Flanged.
Pressure Range: Class 150 LB - 2500 LB (PN16 - PN420).
Operation: Electric Actuator, Pneumatic Actuator, Electrohydraulic Actuator.
Working Temperature: -196℃ - +570℃.
