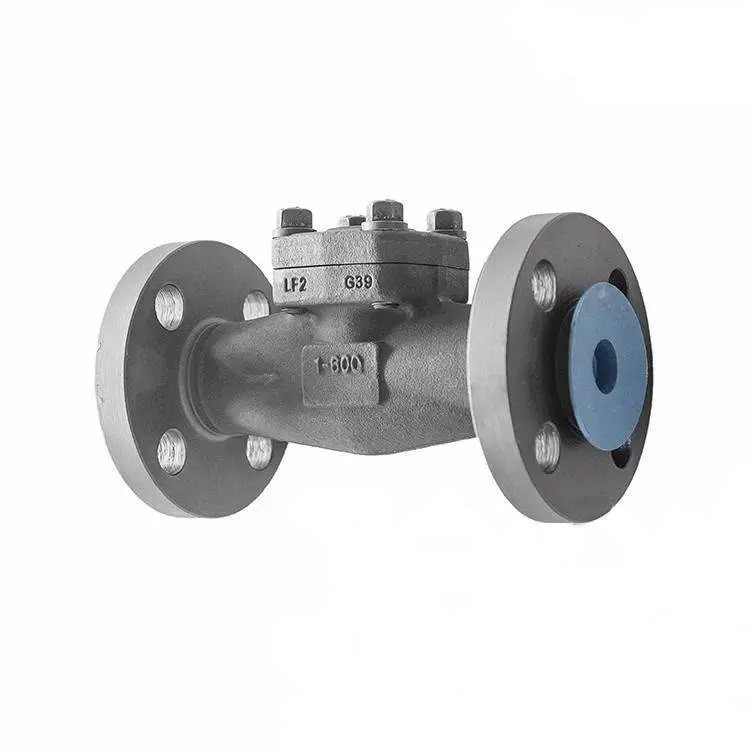

BS 5352 Swing Check Valve, ASTM A350 LF2, 1 Inch, 800 LB, RF

BS 5352 Swing Check Valve, ASTM A350 LF2, 1 Inch, 800 LB, RF

Key Specifications / Features

Model No.: WV-231221-ASCV-06 Hits: 4

Elevate your fluid control systems with our precision-crafted Forge Steel Swing Check Valve. Manufactured to meet the highest standards, this valve complies with BS 5352 and API 602, ensuring superior quality. Crafted from durable ASTM A350 LF2, it operates seamlessly in Class 800 LB and PN130 environments. Designed with versatility in mind, this 1-inch check valve features a cryogenic type, making it suitable for a range of applications.

Request a quote

Detail Information

Design Standard: API 602, BS 5352
Body Material: ASTM A350 LF2
Nominal Diameter: DN25, 25 MM, 1 INCH
Pressure: Class 800 LB
End Connection: RF FLANGE
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: DN25 Cryogenic Forge Steel Check Valve, Forge Steel Check Valve Swing Type Lf2, swing check valve class 800

We offers swing check valves in DN 15-600,VERVO swing check valves feature very easy access to maintenance and can be installed in  horisontal position.

What is a swing check valve?

A swing check valve is mounted with a disc that swings on a hinge or shaft. The disc swings off the seat to allow forward flow and when the flow is stopped, the disc swings back onto the seat to block reverse flow. The weight of the disc and the return flow has an impact on the shut-off characteristics of the valve.

Advantages of our swing check valves

Our swing check valves are designed with focus on easy access to maintenance. By unscrewing a few bolts the bonnet assembly including hinge and disc can be removed from the body, and maintenance can be performed.

Our metal-seated, forged steel, swing check valves provide superior performance and reliability in a wide range of applications.

Uni-directional shut-off
Size Range: NPS 1/4 - 4 Inch (DN 8-100)
Pressure Class: ASME Class 800/900/1500/2500
Body Materials: ASTM A105, ASTM A350 LF2, ASTM A350 LF3, ASTM A350 LF5, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F51, ASTM A182 F53, ASTM A182 F5, ASTM A182 F11, ASTM A182 F22, ASTM A182 F91, Monel, Inconel, Hastelloy
Standards: API 602, NACE MR0175, BS 5354
End Connections: Threaded, Socket Weld, RF Flange, RTJ Flange, Butt Weld
