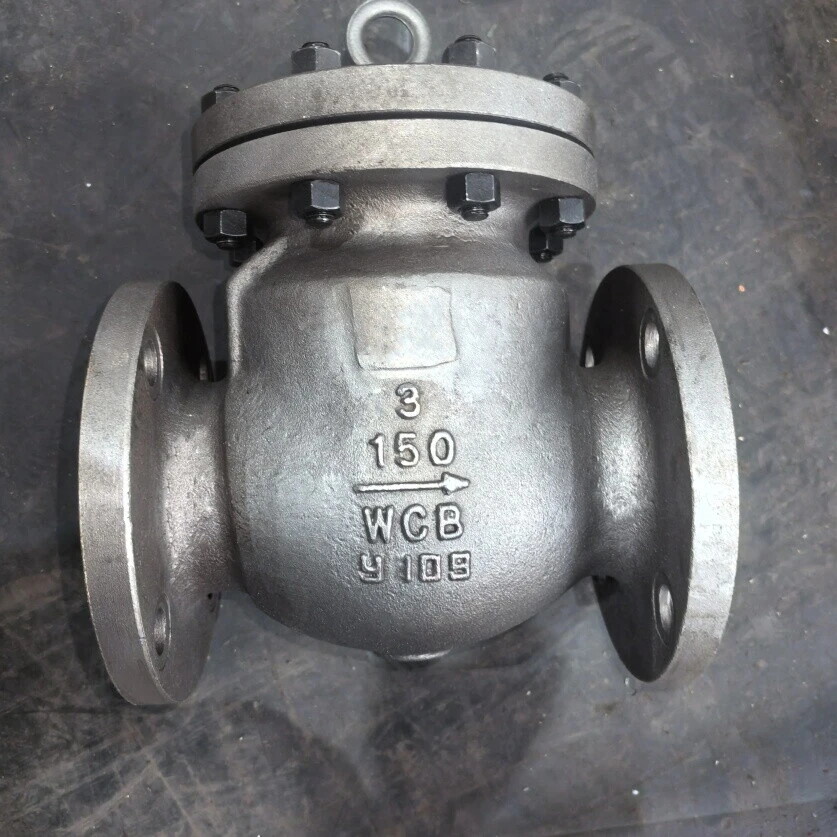

BS 1868 Swing Check Valve, ASTM A216 WCB, 3 Inch, 150 LB, SW
Key Specifications / Features
Model No.: WV-240323-ASCV-01 Hits: 2
Discover our BS 1868 Swing Check Valve Supplier, offering high-quality valves designed to meet stringent industry standards. These valves feature a 3-inch size, Class 150 LB rating, and are constructed from ASTM A216 WCB material for robust performance. Equipped with a spiral wound gasket and RF end connections, they ensure reliable sealing and leak-free operation.
Request a quoteTags:
Detail Information
wing Check Valve, RF, ISO 9001.
Design: BS 1868.
Body: ASTM A216 WCB
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
End Connection: Flange
Face to Face: ASME B16.10.
Test and inspection: API 598
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2-20 Inch, DN15 - DN500
Pressure range: Class 150 - 2500 LB, PN16 - PN420
Working temperature: -29℃ - +425℃.
End connection: BW, Flanged.
Design: BS 1868.
Body: ASTM A216 WCB
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
End Connection: Flange
Face to Face: ASME B16.10.
Test and inspection: API 598
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2-20 Inch, DN15 - DN500
Pressure range: Class 150 - 2500 LB, PN16 - PN420
Working temperature: -29℃ - +425℃.
End connection: BW, Flanged.
| Product | Swing Check Valve. |
| Nominal diameter | 1/2 Inch - 20 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | BS1868. |
| Face to face | ASME B16.10. |
| Connection end | BW, Flanged (RTJ, RF). |
| Test standard | API 598. |
| Package | Plywood |
| Application | water, oil and gas. |
| Certificate | ISO 9001, CE, TS |
