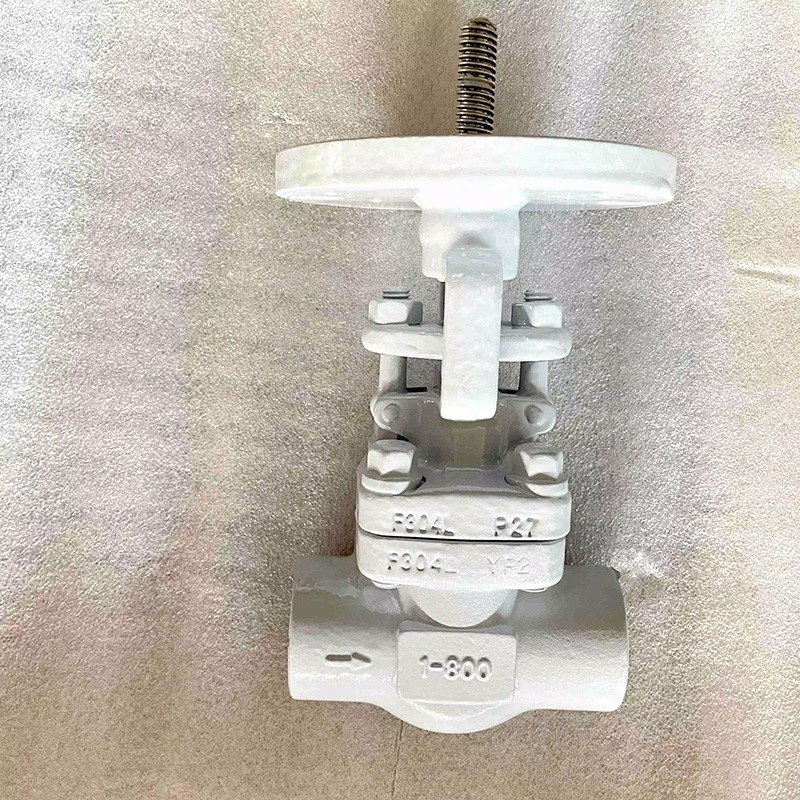

Bolted Bonnet Globe Valve, ASTM A182 F304L, 1 Inch, 800 LB

Bolted Bonnet Globe Valve, ASTM A182 F304L, 1 Inch, 800 LB

Key Specifications / Features

Model No.: WV-231222-AGBV-06 Hits: 0

Experience reliable fluid control with our Bolted Bonnet Globe Valve, designed for optimal performance. Crafted with precision, this valve features a 1-inch size, Class 800 LB, and is compliant with API 602 standards. Constructed from high-quality ASTM A182 F304L material, it ensures durability and longevity in various applications. The OS & Y (Outside Screw and Yoke) design enhances operational safety, and the reduced bore further refines fluid control capabilities.

Request a quote

Detail Information

Valve description:
Globe valve, bolted bonnet, SW, bare shaft, reduced bore, OS & Y, spiral wound gasket.
Design: API 602.
Body: ASTM A182 F304L
Nominal size: 1 Inch.
Nominal class: 800 LB.
End Connection: SW.
Operation: BARE SHAFT
Face to face: MFG.
Test and inspection: API 598.

Product Range:
Body material: Stainless Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: Flange (FF, RF, RTJ), BW, SW, Threaded..
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +300℃.

Technical parameters and characteristics
Product Globe valve.
Nominal diameter 1/2 Inch - 32 Inch.
Design temp. Down to -29℃.
Design pressure Class 150 - 2500 LB.
Material Stainless Steel.
Design standard API 602.
Face to face MFG.
Operation BARE SHAFT
Connection end Flange (FF, RF, RTJ), BW, SW, Threaded..
Test standard API 598.
Package Plywood
Application The oil and gas industry
Special test Impact test.
