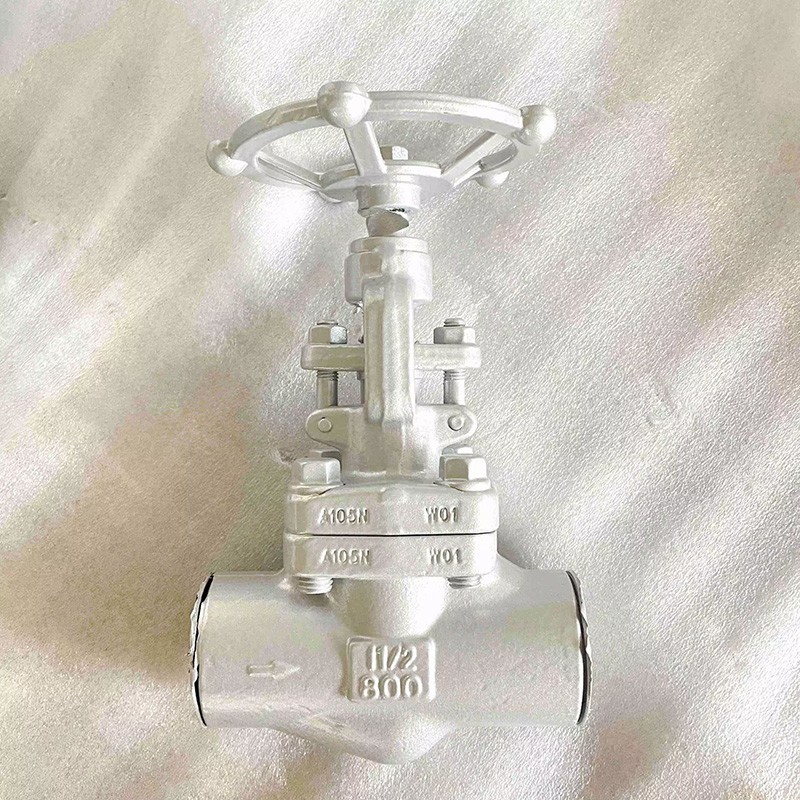

ASTM A105N Globe Valve, Reduced Bore, 1-1/2 Inch, 800 LB, SW
Key Specifications / Features
Model No.: WV-231222-AGBV-07 Hits: 37
Explore precision fluid control with our Reduced Bore Globe Valve, expertly crafted in China. This valve, compliant with API 602 standards, offers reliable performance in a 1-1/2-inch size, Class 800 LB, and DN40, PN130 environments. Crafted from high-quality ASTM A105N material, it ensures durability and longevity in various applications. Featuring a Bolted Bonnet design for easy maintenance, the OS & Y (Outside Screw and Yoke) configuration enhances operational safety.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Valve description:
Globe valve, bolted bonnet, reduced port, OS & Y, BB.Design: API 602.
Body: ASTM A105N
Nominal size: 1-1/2 Inch.
Nominal class: 800 LB.
End Connection: SW.
Operation: Handwheel
Face to face: MFG.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: Flange (FF, RF, RTJ), BW, SW, Threaded.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Globe valve. |
| Nominal diameter | 1/2 Inch - 2 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API 602. |
| Face to face | MFG. |
| Operation | Handwheel |
| Connection end | Flange (FF, RF, RTJ), BW, SW, Threaded. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
