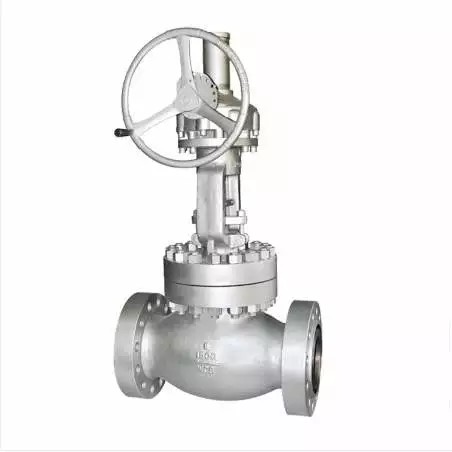

API 600 Globe Valve, ASTM A216 WCB, 8 Inch, Class 1500 LB
Key Specifications / Features
Model No.: WV-231222-AGBV-05
Hits: 148
Discover superior fluid control with our API 600 Globe Valve, meticulously crafted at our advanced manufacturing facility in China. Constructed from high-quality Carbon Steel ASTM A216 WCB, this valve operates seamlessly in 8-inch size, Class 1500 LB, and PN250 environments, ensuring reliability and durability for various applications. The bolted bonnet design facilitates easy maintenance, while the RF (Raised Face) end ensures secure connections.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Valve description:
Globe valve, bolted bonnet, Raised flange, Gear, FULL PORT.Design: API 600.
Body: ASTM A216 WCB
Nominal size: 8 Inch.
Nominal class: 1500 LB.
End Connection: RF.
Operation: Gear
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Globe valve. |
| Nominal diameter | 1/2 Inch - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API 600. |
| Face to face | ASME B16.10. |
| Operation | Gear, handwheel |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
| Special test | Impact test. |
