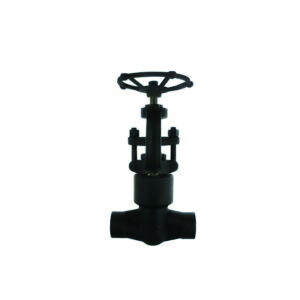

ASTM A350 LF2 Globe Valve, API 602, 1/2-2 Inch, 2500 LB, BW
Key Specifications / Features
Model No.: WV-240307-FGBV-01 Hits: 0
Our forged globe valves, manufactured to API 602 standards and crafted from ASTM A350 LF2 material, are designed for high-pressure applications. Available in sizes ranging from 1/2 inch to 2 inches, with a Class rating of 2500 LB, these valves feature an outside screw and yoke, along with a rising stem for easy operation.
Request a quoteTags:
Detail Information
Standard: API 602
Material: ASTM A350 LF2, ASTM A105N
Size: 1/2-2 Inch, DN15-DN50
Pressure: Class 2500 LB, PN420
End Connection: BW, SW
Operating: Handwheel
Feature: Outside Screw & Yolk, Rising Stem
Test & Inspection: API 598
Face to Face: ASME B16.10
Working Temperature: -29℃ – 560℃
Material: ASTM A350 LF2, ASTM A105N
Size: 1/2-2 Inch, DN15-DN50
Pressure: Class 2500 LB, PN420
End Connection: BW, SW
Operating: Handwheel
Feature: Outside Screw & Yolk, Rising Stem
Test & Inspection: API 598
Face to Face: ASME B16.10
Working Temperature: -29℃ – 560℃
