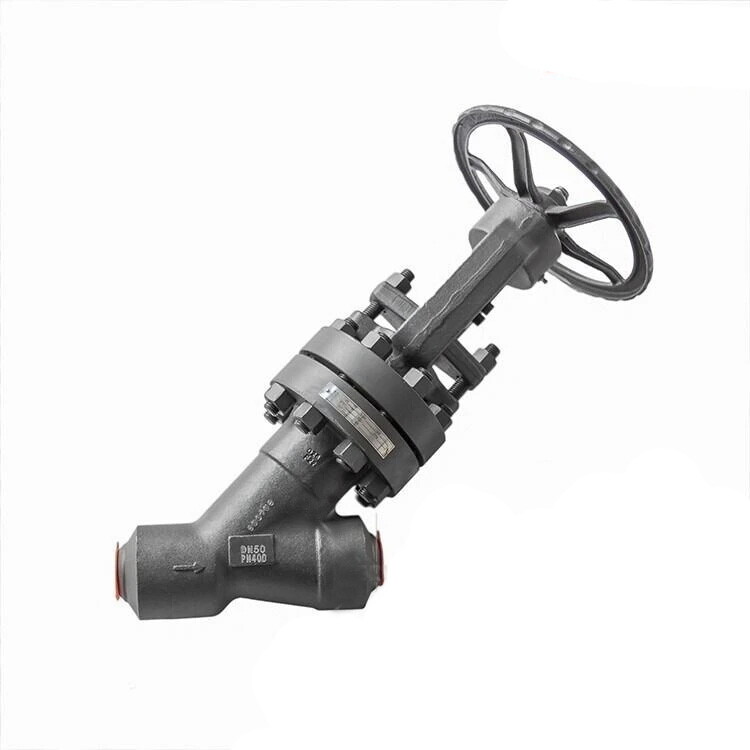

BS 5352 Y Globe Valve, ASTM A105, 2 Inch, Class 2500 LB, BW
Key Specifications / Features
Model No.: WV--240402-YGBV-01 Hits: 99
Introducing our Y-pattern globe valve maker, constructed with forged ASTM A105 material. This valve features a 2-inch size, Class 2500 LB rating, and a bolted bonnet design. Compliant with BS 5352 and API 602 standards, it boasts a reliable gasket seal and butt welding end connections. With a DN50 size and PN420 pressure rating, this valve delivers exceptional performance in demanding industrial environments.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Name: Forged Steel Y Type Globe Valve
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 150 - 800 LB, 1500 LB, 2500 LB
Feature: Bolted Bonnet Industrial Globe Valve, y-type globe valve
Media: Oli, Gas, Water
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65°F To 450°F (-54℃ To 232℃)
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 150 - 800 LB, 1500 LB, 2500 LB
Feature: Bolted Bonnet Industrial Globe Valve, y-type globe valve
Media: Oli, Gas, Water
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65°F To 450°F (-54℃ To 232℃)
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
