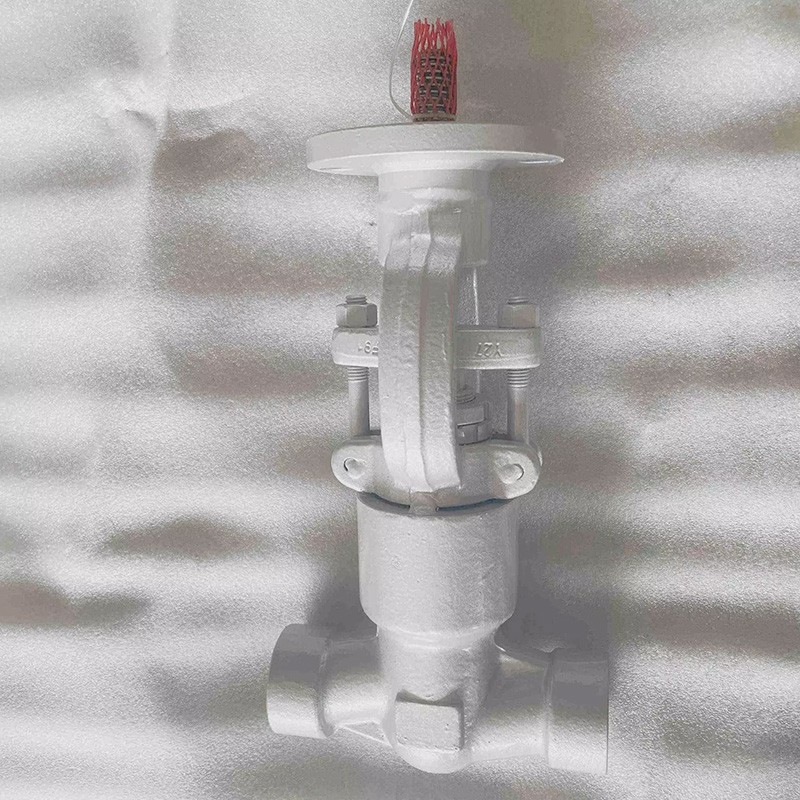

Bare Shaft Globe Valve, ASTM A182 F91, 2 Inch, Class 2500 LB

Bare Shaft Globe Valve, ASTM A182 F91, 2 Inch, Class 2500 LB

Key Specifications / Features

Model No.: WV-231222-AGBV-09 Hits: 33

Discover precision fluid control with our Bare Shaft Globe Valve, meticulously manufactured in China. This valve, designed in compliance with API 602 standards, offers reliable performance in a 2-inch size, Class 2500 LB, and DN50, PN420 applications. Crafted from high-grade ASTM A182 F91 material, it ensures durability and resilience in diverse environments.

Request a quote

Detail Information

Valve description:
Globe valve, welded bonnet, bare shaft.
Design: API 602.
Body: ASTM A182 F91
Nominal size: 1-1/4 Inch.
Nominal class: 2500 LB.
End Connection: NPT.
Operation: Handwheel
Face to face: MFG'S.
Test and inspection: API 598.

Product Range:
Body material: Forged steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: SW, BW, NPT.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -30℃ - +300℃.

Technical parameters and characteristics
Product Globe valve.
Nominal diameter 1/2 Inch - 2 Inch.
Design temp. Down to -29℃.
Design pressure Class 150 - 2500 LB.
Material Forged steel.
Design standard API 602.
Face to face MFG'S.
Operation Handwheel
Connection end SW, BW, NPT.
Test standard API 598.
Package Plywood
