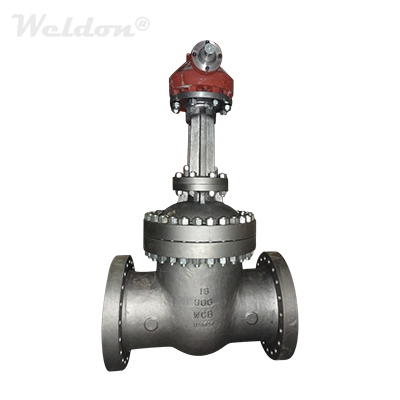

ASTM A216 WCB Sluice Valve, API 600, 16 Inch, Class 900, BB, RF
Key Specifications / Features
Model No.: AGV-06 Hits: 77
China ASTM A216 Sluice Valve Supplier Provides ASTM A216 WCB Sluice Valve, Standard API 600, 16 Inch, Class 900, Bolted Bonnet (BB) Design, Raised Face.
Request a quoteTags:
Detail Information
Size: 16 Inch.
Pressure Rating: Class 900.
Body/Bonnet: ASTM A216 WCB.
Wedge: ASTM A216 WCB.
Trim: 5#.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem with outside screw and yoke.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: API 600.
Face to Face: ASME B16.10.
Flanged Ends: ASME B16.5.
Test and Inspection: API 598.
Pressure Rating: Class 900.
Body/Bonnet: ASTM A216 WCB.
Wedge: ASTM A216 WCB.
Trim: 5#.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem with outside screw and yoke.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: API 600.
Face to Face: ASME B16.10.
Flanged Ends: ASME B16.5.
Test and Inspection: API 598.
