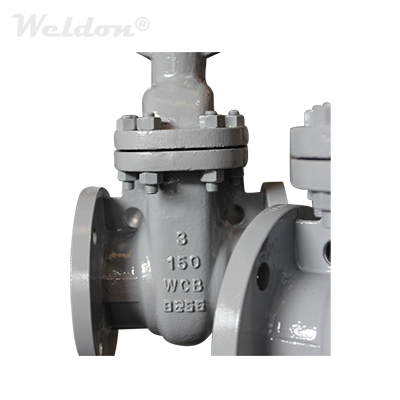

API 600 Gate Valve, ASTM A216 WCB, 3 Inch, 150 LB, RF, BB
Key Specifications / Features
Model No.: AGV-01 Hits: 283
China API 600 Gate Valve Factory Provides API 600 Gate Valve, ASTM A216 WCB Body and Bonnet, Size 3 Inch, Pressure 150 LB, Bolted Bonnet, Raised Face.
Request a quoteTags:
Detail Information
Size: 3 Inch.
Pressure Rating: 150 LB.
Body and Bonnet: ASTM A216 WCB.
Wedge: ASTM A216 WCB.
Trim: 5#.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem with outside screw and yoke.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: API 600.
Face to Face: ASME B16.10.
Flanged Ends: ASME B16.5.
Test and Inspection: API 598.
Pressure Rating: 150 LB.
Body and Bonnet: ASTM A216 WCB.
Wedge: ASTM A216 WCB.
Trim: 5#.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem with outside screw and yoke.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: API 600.
Face to Face: ASME B16.10.
Flanged Ends: ASME B16.5.
Test and Inspection: API 598.
