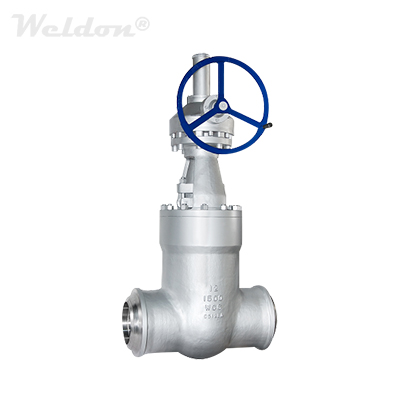

ASTM A217 WC6 Gate Valve, API 600, 12 Inch, Class 1500, BW
Key Specifications / Features
Model No.: AGV-07
Hits: 641
China ASTM A217 WC6 Gate Valve Provider Supplies ASTM A217 WC6 Gate Valve, API 600, 12 Inch, Class 1500 (1500 LB), BW Ends, Raised Face, BB Design.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Size: 12 Inch.
Pressure Rating: Class 1500.
Body/Bonnet: ASTM A217 WC6.
Wedge: ASTM A217 WC6.
Trim: ASTM A182 F22.
Connect Ends: Butt Weld.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem with outside screw and yoke.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: API 600.
Face to Face: ASME B16.10.
Butt Welded Ends: ASME B16.25.
Test and Inspection: API 598.
Pressure Rating: Class 1500.
Body/Bonnet: ASTM A217 WC6.
Wedge: ASTM A217 WC6.
Trim: ASTM A182 F22.
Connect Ends: Butt Weld.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem with outside screw and yoke.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: API 600.
Face to Face: ASME B16.10.
Butt Welded Ends: ASME B16.25.
Test and Inspection: API 598.
