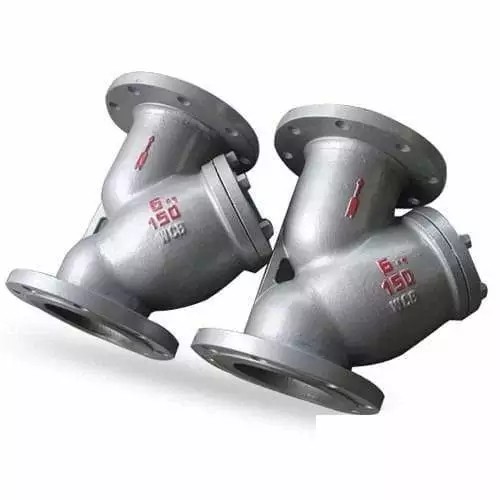

ASTM A216 WCB Pipe Strainer, ASME B16.34, 6 Inch, 150 LB, RF
Key Specifications / Features
Model No.: WV-240105-YTS-03 Hits: 8
Crafted to perfection, our ASME B16.34 Pipe Strainer is a Y Type marvel. Manufactured with precision using Carbon Steel ASTM A216 WCB, this 6-inch strainer is tailored for Class 150 LB applications, with DN150 size and PN20 pressure. Its superior design adheres to Face To Face ASME B16.10 standards, and it is fitted with an RF end for seamless integration.
Request a quoteTags:
Detail Information
Design Standard: ASME B16.34
Body Material: ASTM A216 WCB
Nominal Diameter: 6 Inch, DN150
Pressure: Class 150 LB, CL150, PN20
End Connection: RF Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
High Light: Wye Strainer, Forged Y Strainer, Fabricated Y Strainer
Product Range
Size: 1/2 Inch - 48 Inch
Pressure Rating: Class 150 - 2500 LB
Body Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF3, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A217 C5, ASTM A217 WC6, ASTM A217 WC9, ASTM GR50 W12
Screen Material: SS 304, SS 316, SS 316L, ASTM A182 F51, Monel, Hastelloy
Design & Manufacture Standard: ASME B16.34, ANSI, DIN, JIS
Face-to-face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25, ASME B16.11
Test and Inspection: API 598
Body Material: ASTM A216 WCB
Nominal Diameter: 6 Inch, DN150
Pressure: Class 150 LB, CL150, PN20
End Connection: RF Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
High Light: Wye Strainer, Forged Y Strainer, Fabricated Y Strainer
Product Range
Size: 1/2 Inch - 48 Inch
Pressure Rating: Class 150 - 2500 LB
Body Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF3, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A217 C5, ASTM A217 WC6, ASTM A217 WC9, ASTM GR50 W12
Screen Material: SS 304, SS 316, SS 316L, ASTM A182 F51, Monel, Hastelloy
Design & Manufacture Standard: ASME B16.34, ANSI, DIN, JIS
Face-to-face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25, ASME B16.11
Test and Inspection: API 598
