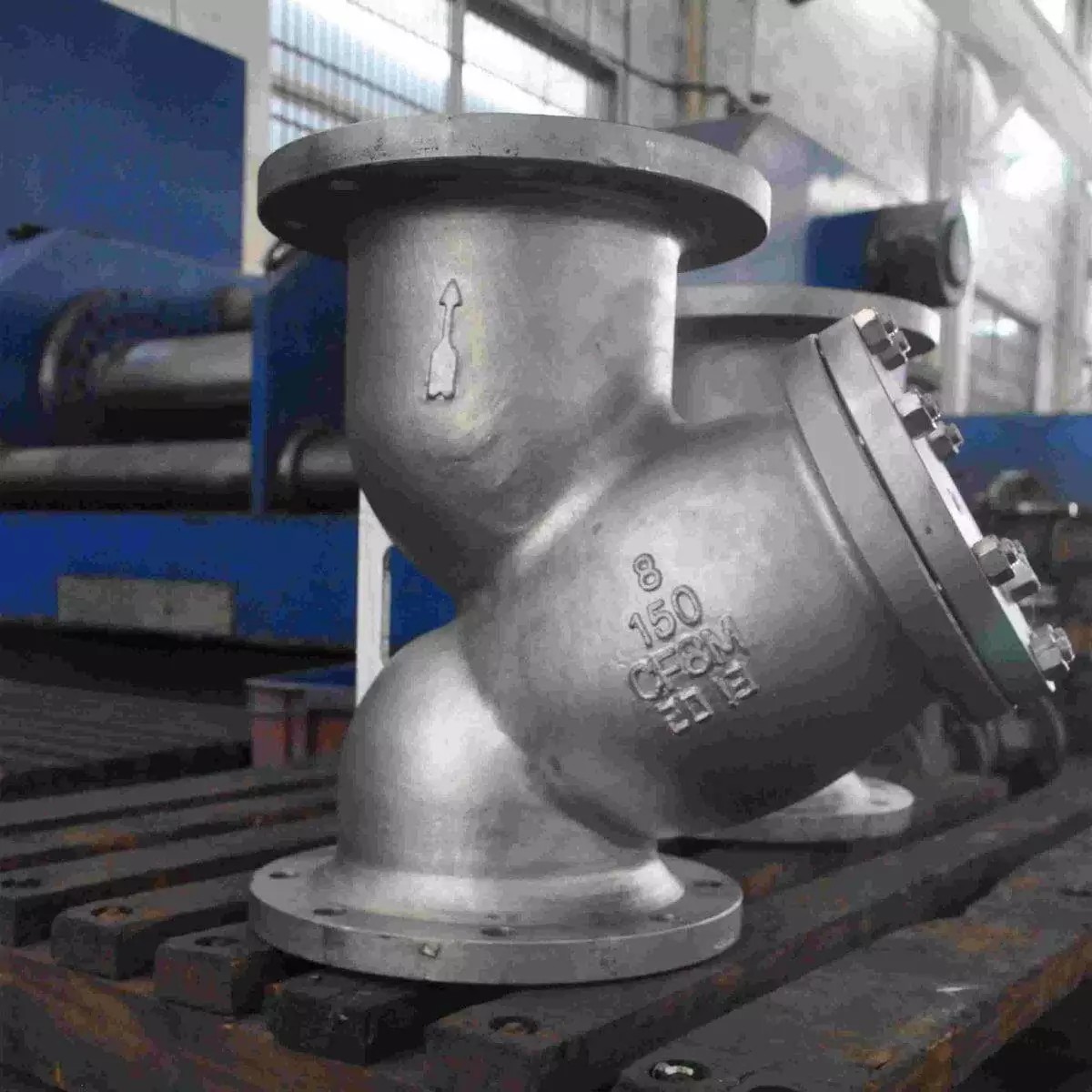

ANSI B16.34 Y Strainer, ASTM A351 CF8M, 8 Inch, 150 LB, RF
Key Specifications / Features
Model No.: WV-240105-YTS-02 Hits: 40
Discover peak performance with our ANSI B16.34 Y-Pattern Strainer. Engineered from Stainless Steel ASTM A351 CF8M, this 8-inch strainer is ideal for Class 150 LB applications, with DN200 size and PN20 pressure. Its exceptional quality is validated through rigorous API 598 testing, and it features raise flanged and butt weld ends for versatile installation.
Request a quoteTags
Detail Information
Design: ANSI B16.34.
Body: ASTM A351 CF8M
Nominal size: 8 Inch.
Nominal class: 150 LB.
End Connection: RF
Test and inspection: API 598.
Product Range:
Body material: Stainless steel.
Normal diameter: 1/2 - 24 Inch (DN15 - DN600).
End connection: BW, Flanged.
Pressure range: Class 150 - 1500 LB (PN16 - PN250).
Working temperature: -35℃ - +329℃.
Body: ASTM A351 CF8M
Nominal size: 8 Inch.
Nominal class: 150 LB.
End Connection: RF
Test and inspection: API 598.
Product Range:
Body material: Stainless steel.
Normal diameter: 1/2 - 24 Inch (DN15 - DN600).
End connection: BW, Flanged.
Pressure range: Class 150 - 1500 LB (PN16 - PN250).
Working temperature: -35℃ - +329℃.
| Product | Y-Strainer. |
| Nominal diameter | 1/2 Inch - 24 Inch. |
| Design temp. | Down to -35℃. |
| Design pressure | Class 150 - 1500 LB. |
| Material | Carbon Steel. |
| Design standard | ANSI B16.34. |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
