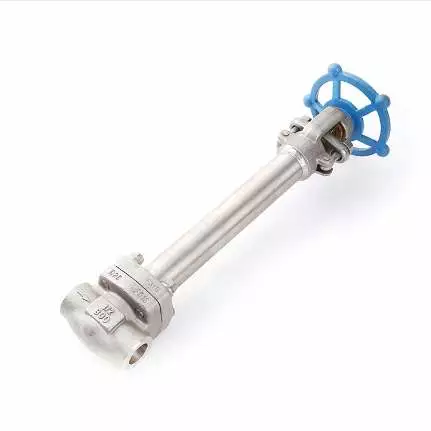

ASTM A182 F316 Gate Valve, API 602, 1/2 Inch, 800 LB, SW End
Key Specifications / Features
Model No.: WV-231219-AGV-03 Hits: 62
As a reliable supplier, delve into our Cryogenic Gate Valve range featuring a meticulously crafted valve from ASTM A182 F316. Tailored for precision and dependability, our 1/2 Inch valve, suitable for DN15 applications, is rated at Class 800 LB and PN130, aligning seamlessly with API 602 standards. With a bolted bonnet, extended stem, and SW end, trust in our valve's performance excellence for your cryogenic applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Valve description:
Gate valve, bolted bonnet, Socket Weld, extend stem, Cryogenic.Design: API 602.
Body: ASTM A182 F316
Nominal size: 1/2 Inch.
Nominal class: 800 LB.
End Connection: SW.
Face to face: MFG'S
Test and inspection: API 598.
Product Range:
Body material: Stainless steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: BW, Flanged, SW, FNPT.
Pressure range: 150 - 2500 LB (PN16 - PN250).
Working temperature: -52℃ - +300℃.
Technical parameters and characteristics
| Product | Gate valve. |
| Nominal diameter | 1/2 Inch - 2 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Stainless steel. |
| Design standard | API 602. |
| Face to face | MFG'S. |
| Connection end | BW, Flange,SW,FNPT. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
