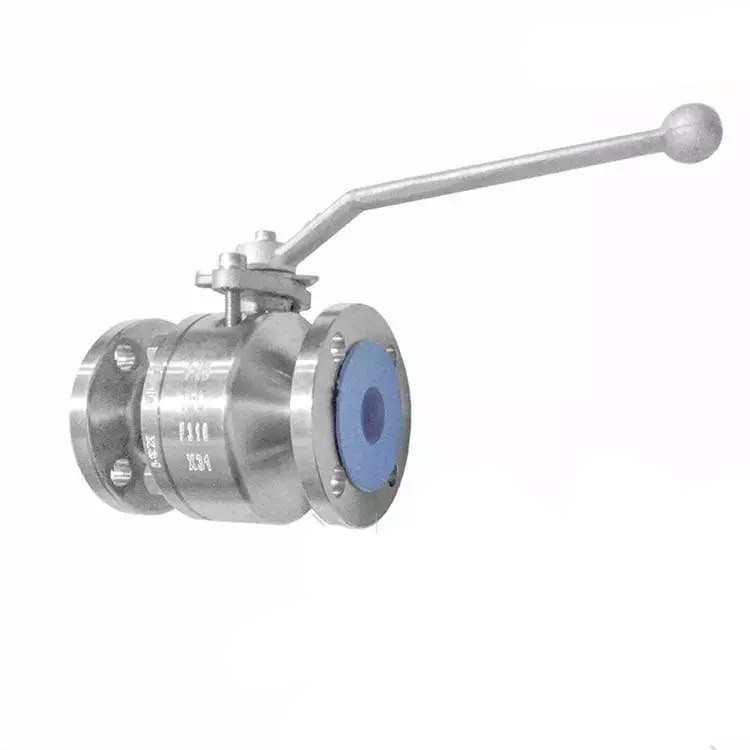

ASTM A182 F316 Floating Ball Valve, 1-1/2 Inch, Class 150 LB
Key Specifications / Features
Model No.: WV-231226-FBV-06 Hits: 10
Welcome to our cutting-edge Stainless Steel Floating Ball Valve Plant, where precision engineering meets top-tier performance in fluid control. Crafted with excellence, our valve is designed to elevate your industrial processes to new levels of efficiency. Constructed from high-quality ASTM A182 F316 stainless steel, this 1-1/2 inch valve ensures exceptional corrosion resistance and durability.
Request a quoteTags:
Detail Information
Name: 2 Piece Ball Valve
Size: 1-1/2 Inch, DN40
Pressure: Class 150 LB, PN20
Standard: API 608
Material: ASTM A182 F316
Temperature Of Media: -29℃ To 120℃
Feature: Soft Seated
Product Range
Size: 1/4 -4 Inch, DN8-DN100
Pressure: Class 150-2500 LB
Standard: API 608, GOST, DIN
Material: Forging Steel
End: RF, RTJ, or BW
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
Size: 1-1/2 Inch, DN40
Pressure: Class 150 LB, PN20
Standard: API 608
Material: ASTM A182 F316
Temperature Of Media: -29℃ To 120℃
Feature: Soft Seated
Product Range
Size: 1/4 -4 Inch, DN8-DN100
Pressure: Class 150-2500 LB
Standard: API 608, GOST, DIN
Material: Forging Steel
End: RF, RTJ, or BW
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
| tem | Valve |
| Type | Ball Valve |
| Certification | CE,TS,ISO9001,ISO14001,ISO18001,API |
| Power | Manual |
| Port Size |
1-1/2 Inch |
| Structure | Ball, Floating |
| Pressure | low pressure |
| Temperature | -46℃-200℃ |
| Medium | Weak acid-base medium |
| Connection form | Flanged |
| Body material | Stainless Steel F316 |
| Seal material | Gasket |
