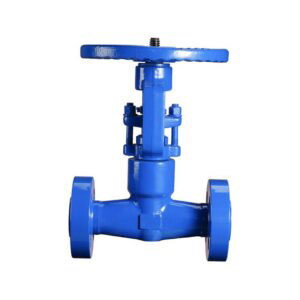

ASTM A182 F22 Globe Valve, ASME B16.34, 1/2-2 Inch, 2500 LB
Key Specifications / Features
Model No.: WV-240307-FGBV-04 Hits: 16
Welcome to our ASTM A182 F22 Globe Valve Factory, where precision meets performance. Crafted to the highest standards, our globe valves adhere to BS 5352 and ASME B16.34 specifications, ensuring exceptional quality and reliability. Available in sizes ranging from 1/2 to 2 inches, these valves are designed to excel in high-pressure environments, with a Class rating of 2500 LB and PN420.
Request a quoteTags
Detail Information
Standard: ASME B16.34, BS 5352
Material: ASTM A182 F22
Size: 1/2-2 Inch, DN15-DN50
Pressure: Class 2500 LB, PN420
0End Connection: Flanged
Operating: Handwheel
Test & Inspection: API 598
Face to Face: ASME B16.10
Working Temperature: -196℃ – 560℃
Structure features: Bolted bonnet, Welded bonnet, Pressure seal bonnet, outside screw and yoke
Material: ASTM A182 F22
Size: 1/2-2 Inch, DN15-DN50
Pressure: Class 2500 LB, PN420
0End Connection: Flanged
Operating: Handwheel
Test & Inspection: API 598
Face to Face: ASME B16.10
Working Temperature: -196℃ – 560℃
Structure features: Bolted bonnet, Welded bonnet, Pressure seal bonnet, outside screw and yoke
