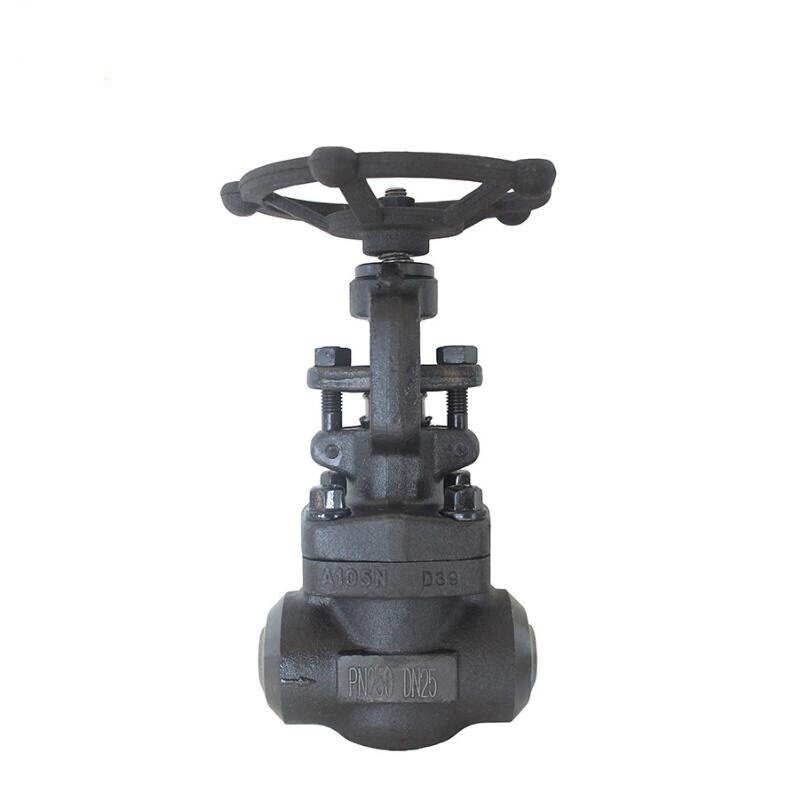

BS 5352 Globe Valve, ASTM A105N, 1 Inch, Class 1500 LB, BW
Key Specifications / Features
Model No.: WV-240304-FGBV-05 Hits: 1
Provider of BS 5352 and ASME B16.34 compliant globe valves. Constructed with forged steel ASTM A105N, suitable for high-pressure applications up to Class 1500 LB and PN250. Features a 1-inch size, butt welded end connections, and handwheel operation. Tested to API 598 standards for quality assurance.
Request a quoteTags:
Detail Information
Standard: BS 5352, API 602, ASME B16.34
Material: ASTM A105N
Size: 1 Inch, DN25
Pressure: Class 1500 LB, PN250
End Connection: BW
Operating: Handwheel
Test & Inspection: API 598
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -196℃ – +560℃
Structure features: Bolted bonnet, Welded bonnet, Pressure seal bonnet, outside screw and yoke
Material: ASTM A105N
Size: 1 Inch, DN25
Pressure: Class 1500 LB, PN250
End Connection: BW
Operating: Handwheel
Test & Inspection: API 598
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -196℃ – +560℃
Structure features: Bolted bonnet, Welded bonnet, Pressure seal bonnet, outside screw and yoke
