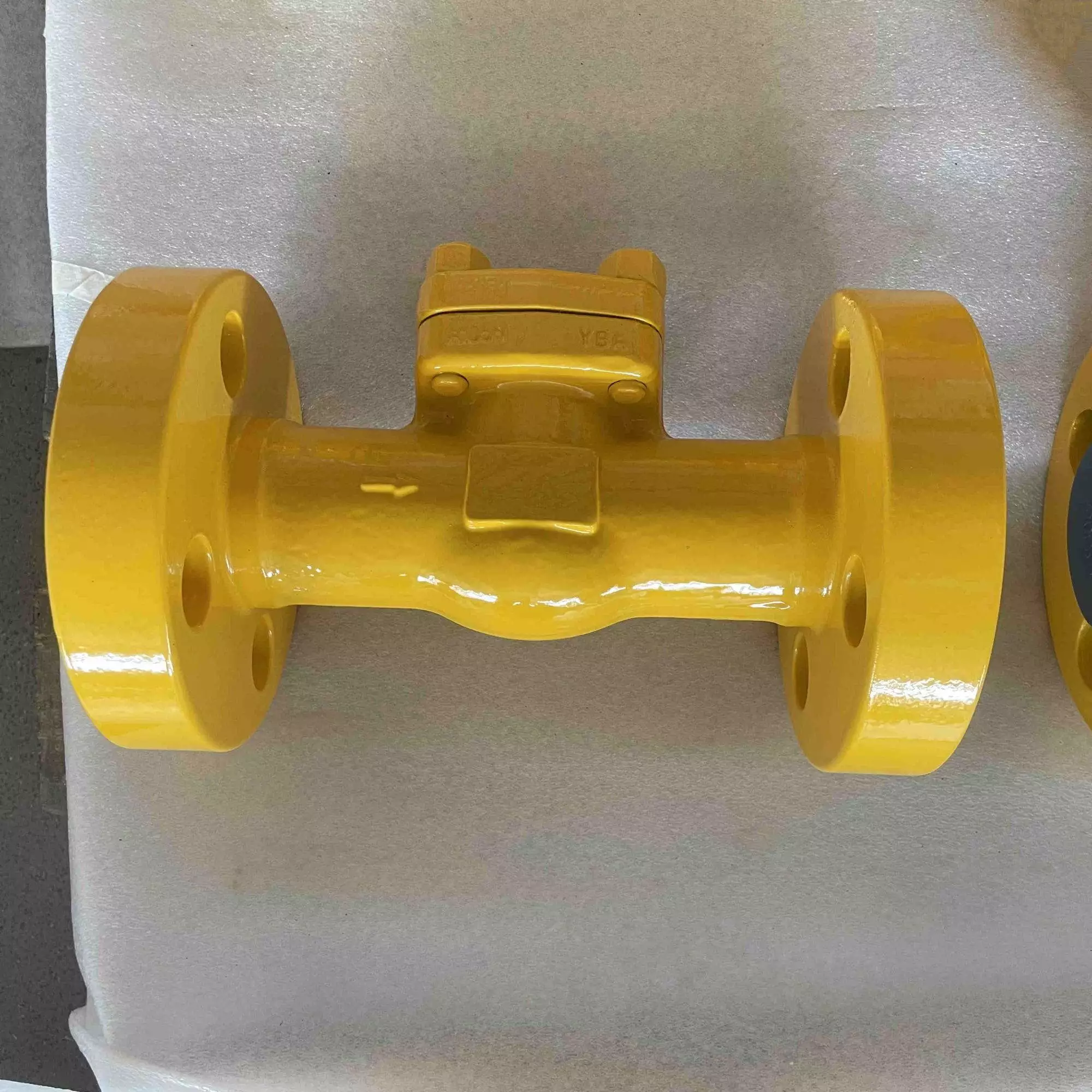

ASTM A105N Lift Check Valve, Bolted Bonnet, 1-1/2 IN, 300 LB

ASTM A105N Lift Check Valve, Bolted Bonnet, 1-1/2 IN, 300 LB

Key Specifications / Features

Model No.: WV-231221-FCV-12 Hits: 2

Experience optimal fluid control with our Bolted Bonnet Lift Check Valve, expertly manufactured to the highest standards. Crafted from ASTM A105N, this valve complies with API 602, ensuring robustness and reliability. The integral seat design and RF (Raised Face) End contribute to its secure connections and efficient performance, meeting Face to Face ASME B16.10 specifications.

Request a quote

Detail Information

Valve description:
Lift check valve, bolted bonnet, raised flanged, integral seat.
Design: API 602.
Body: ASTM A105N
Nominal size: 1-1/2 Inch.
Nominal class: 300 LB.
End Connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.

Technical parameters and characteristics
Product Lift check valve.
Nominal diameter 1/2 Inch - 2 Inch.
Design temp. Down to -29℃.
Design pressure Class 150 - 2500 LB.
Material Carbon Steel.
Design standard API 602.
Face to face ASME B16.10.
Connection end Flange.
Test standard API 598.
Package Plywood
Application  water, oil and gas.
