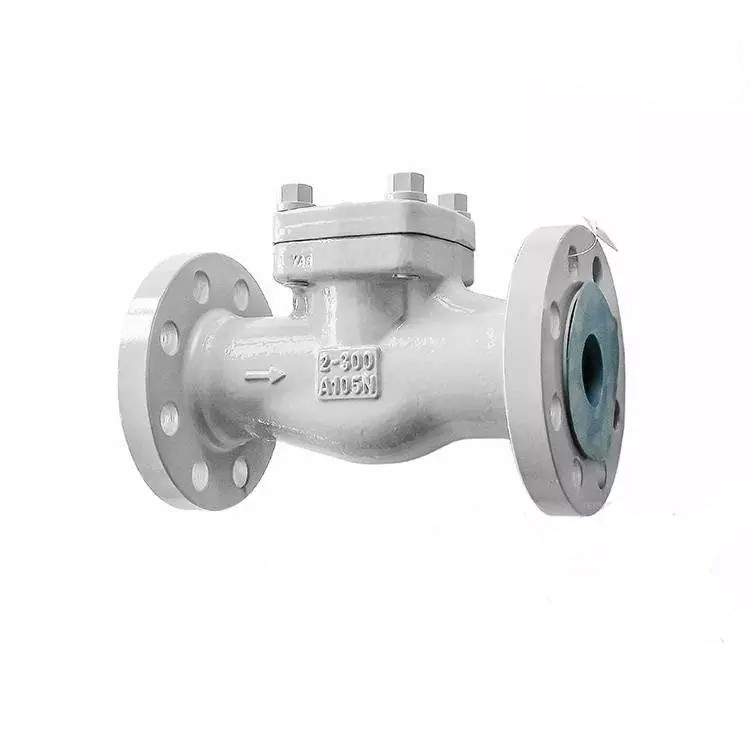

API 602 Piston Lift Check Valve, ASTM A105N, 2 Inch, 300 LB

API 602 Piston Lift Check Valve, ASTM A105N, 2 Inch, 300 LB

Key Specifications / Features

Model No.: WV-231221-FCV-10 Hits: 0

As a trusted supplier of fluid control solutions, we proudly offer the ASTM A105N Piston Lift Check Valve, designed and manufactured in accordance with API 602 and BS 5352 standards. With a 2-inch size (DN50) and operating seamlessly in Class 300 LB and PN50 environments, this valve is ideal for various applications. Featuring integral raise flanged ends and adhering to Face To Face ASME B16.10 specifications, our check valve ensures secure connections and precise performance.

Request a quote

Detail Information

Design Standard: API 602, BS 5352
Body Material: ASTM A105N
Nominal Diameter: 2 Inch, DN50
Pressure: Class 300 LB
End Connection: Integral Raise Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: 2 Inch Carbon Steel Check Valve, Carbon Steel Check Valve DN50, forged lift check valve
Item Carbon steel Check Valve
Type Piston Check Valve
Certification ISO9001,ISO14001,ISO18001,CE,TS,API
Model number H41Y-300LB-DN50
Port Size 2 Inch, DN50
Pressure 300LB
Temperature -29 - 425℃
Connection form Integral Raised Flange
Body material Carbon steel ASTM A105N
Feature Easy disassembly and assembly
