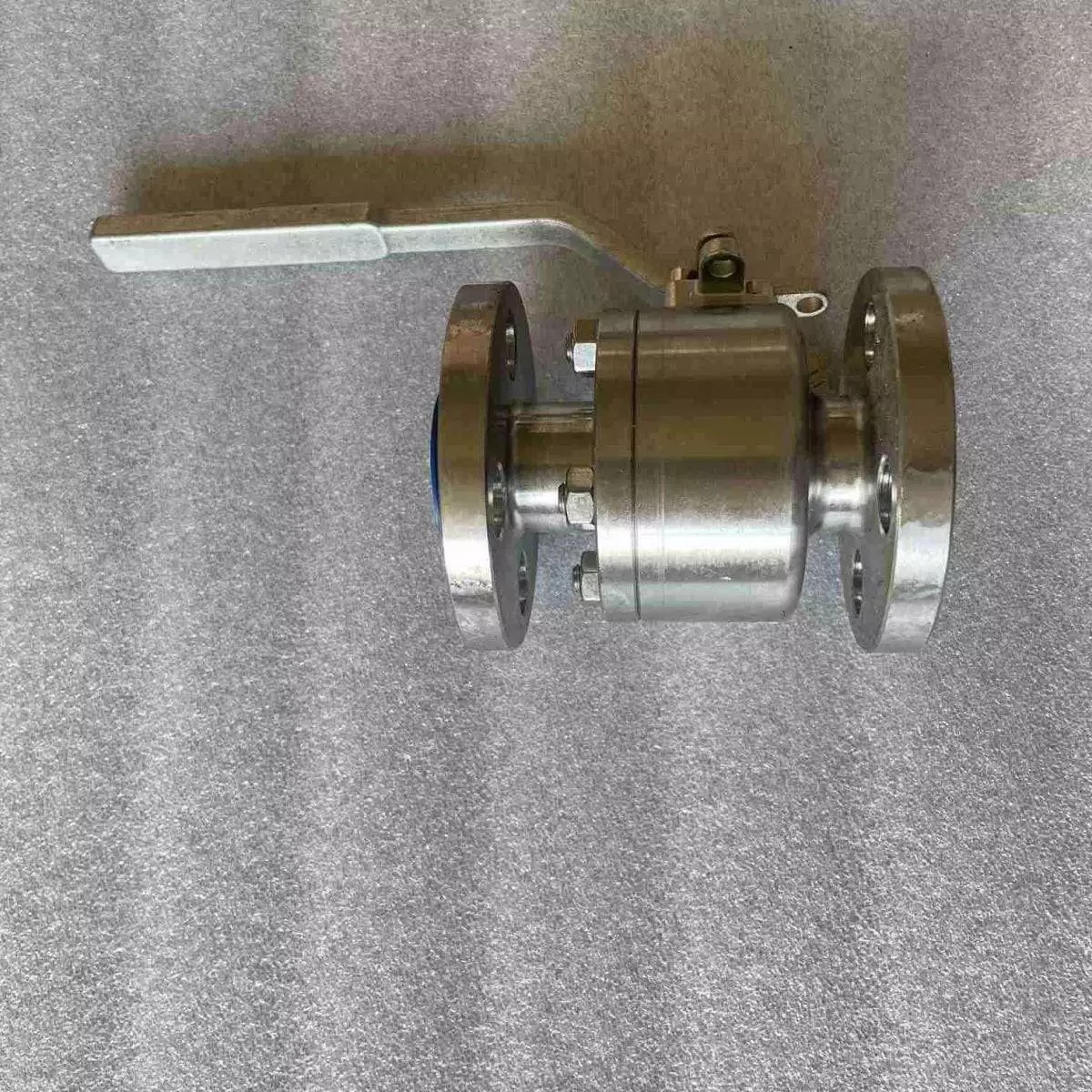

ASTM A182 F51 Ball Valve, 2 piece, 1/2 Inch, 150 LB, RF
Key Specifications / Features
Model No.: WV-231220-FSBV-07
Hits: 52
Explore the capabilities of our Duplex Steel ASTM A182 F51 Ball Valve Mill in China, where precision and excellence converge. Crafted from high-grade Duplex Steel, our two-piece valves are meticulously designed for optimal performance. With a 1/2 Inch size and a Class 150 LB rating, these ball valves adhere to API 608 standards, ensuring reliability across various applications.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Valve description:
Ball valve, duplex steel, bolted bonnet, two-pieces
Design: API 608.
Body: ASTM A182 F51
Nominal size: 1/2 Inch.
Nominal class: 150 LB.
End Connection: RF.
OPERATION: LEVER
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Duplex steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange, SW, NPT
Pressure range: Class 150 - 2500 LB.
Working temperature: -29℃ - +300℃.
Technical parameters and characteristics
Ball valve, duplex steel, bolted bonnet, two-pieces
Design: API 608.
Body: ASTM A182 F51
Nominal size: 1/2 Inch.
Nominal class: 150 LB.
End Connection: RF.
OPERATION: LEVER
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Duplex steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange, SW, NPT
Pressure range: Class 150 - 2500 LB.
Working temperature: -29℃ - +300℃.
Technical parameters and characteristics
| Product | Ball valve. |
| Nominal diameter | 1/2 - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Duplex Steel. |
| Design standard | API608. |
| Face to face | ASME B16.10. |
| OPERATION | LEVER, GEAR |
| Connection end | SW, NPT, BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
