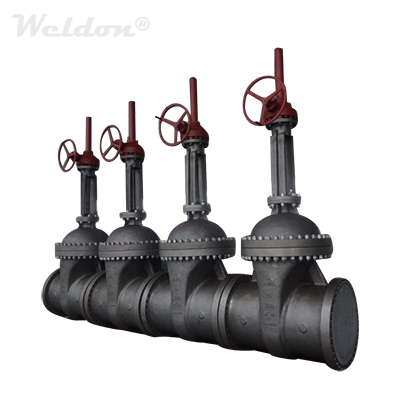

ASME B16.34 Gate Valve, ASTM A216 WCB, 50 Inch, 300 LB, BB, RF
Key Specifications / Features
Model No.: AGV-08
Hits: 187
ASME B16.34 Gate Valve Supplier Supplies ASME B16.34 Gate Valve, ASTM A216 WCB, Size 50 Inch, Pressure 300 LB, Bolted Bonnet, Raised Face, Flanged End.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Size: 50 Inch.
Pressure Rating: Class 300.
Body/Bonnet: ASTM A216 WCB.
Connect Ends: Flanged.
Trim: 5#.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem with outside screw and yoke.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: ASME B16.34.
Face to Face: ASME B16.10.
Flanged Ends: ASME B16.5.
Test and Inspection: API 598.
Pressure Rating: Class 300.
Body/Bonnet: ASTM A216 WCB.
Connect Ends: Flanged.
Trim: 5#.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem with outside screw and yoke.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: ASME B16.34.
Face to Face: ASME B16.10.
Flanged Ends: ASME B16.5.
Test and Inspection: API 598.
