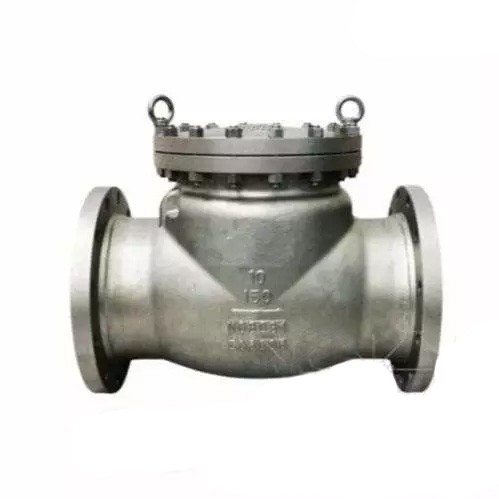

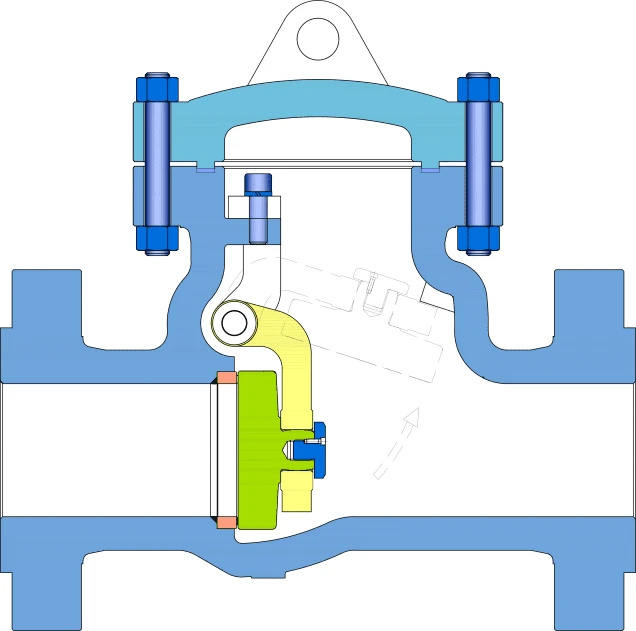

API 6D Swing Check Valve, UNS N08031, 10 Inch, Class 150 LB
Key Specifications / Features
Model No.: WV-240104-ASCV-12 Hits: 4
Discover precision and durability in our Alloy Steel UNS N08031 Swing Check Valve. Meticulously crafted to meet API 6D and BS 1868 standards, this 10-inch valve with a DN250 size is designed for Class 150 LB applications. Featuring a PN20 range, bolted cover, and raise flanged end, it undergoes rigorous API 598 testing for top-tier performance.
Request a quoteDetail Information
Design Standard: API 6D, BS 1868
Body Material: Alloy Steel UNS N08031
Nominal Diameter: 10 Inch, DN250
Pressure: Class 150 LB, CL150, PN20
End Connection: Raise Flanged, RF Flange

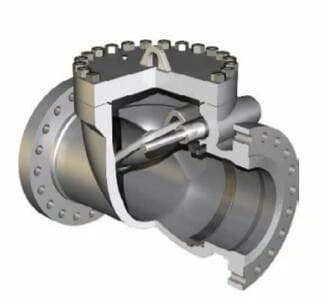

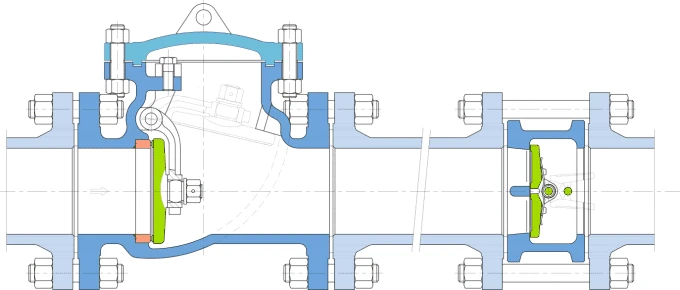

Structure type: Swing Check Valve
Face To Face: ASME B16.10
Temperature: -29℃ - 429℃
Test And Inspection: API 598
Feature: Cast Steel Swing Check Valve, UNS N08031 check valve, Alloy Bolted Cover, Non-Return
Product Range
Size: NPS 2-36 Inch
Pressure: Class 150-2500 LB
Certification: ISO 9001, ISO 14001, ISO 18001, TS, CE, API
Design & manufacture according to API 6D, BS 1868
Face-to-face according to ASME B16.10
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103
Material: Casting ASTM A216 WCB, ASTM A216 WC6, ASTM A216 WC9, ASTM A350 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A995 4A, ASTM A995 5A, ASTM A995 6A, Alloy 20, Monel, Inconel, Hastelloy
Connection: RF, RTJ, or BW
Construction: Full or Reduced Bore
Feature: Bolted Cover or Pressure Seal Cover
|

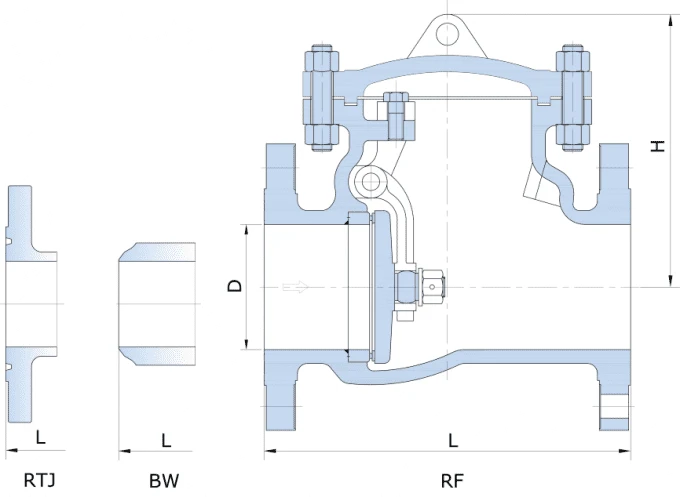

Size in/mm |
D |
L |
H |
Weight (lb/kg) | ||
| RF | RTJ | BW | RF/RTJ | |||
|
2 50 |
2 51 |
8 203 |
8.5 216 |
8 203 |
5.5 140 |
37 17 |
|
2 ½ 65 |
2 ½ 64 |
8.5 216 |
9 229 |
8.5 216 |
6.3 160 |
44 20 |
|
3 80 |
3 80 |
9.5 241 |
10 254 |
9.5 241 |
7.1 180 |
53 24 |
|
4 100 |
4 102 |
11.5 292 |
12 305 |
11.5 292 |
8.27 210 |
84 38 |
|
6 150 |
6 152 |
14 356 |
14.5 368 |
14 356 |
11.42 290 |
198 90 |
|
8 200 |
8 203 |
19.5 495 |
20 508 |
19.5 495 |
14.17 360 |
286 130 |
|
10 250 |
10 252 |
24.5 622 |
25 635 |
24.5 622 |
15.75 400 |
430 195 |
|
12 300 |
12 305 |
27.48 698 |
28 711 |
27.48 698 |
18.11 460 |
661 300 |
|
14 350 |
14 337 |
31 787 |
31.5 800 |
31 787 |
20.47 520 |
804 365 |
|
16 400 |
15.24 387 |
34 864 |
34.5 876 |
34 864 |
24.41 620 |
1178 535 |
|
18 450 |
17.24 438 |
38.5 978 |
39 991 |
38.5 978 |
27.17 690 |
1652 750 |
|
20 500 |
19.25 489 |
38.5 978 |
39 991 |
38.5 978 |
28.35 720 |
1949 885 |
|
24 600 |
23.22 590 |
51 1295 |
51.5 1308 |
51 1295 |
29.13 740 |
2533 1150 |
|
28 700 |
27.24 692 |
57 1448 |
- |
57 1448 |
33.46 850 |
3822 1735 |
|
30 750 |
29.25 743 |
60 1524 |
- |
60 1524 |
39.37 1000 |
4515 2050 |
|
36 900 |
35.23 895 |
77 1956 |
- |
77 1956 |
44.88 1140 |
4626 2100 |
The dimension and weights are for reference only and subject to change without notice.
1. For more size or dimensional information, please contact our sales representative.
