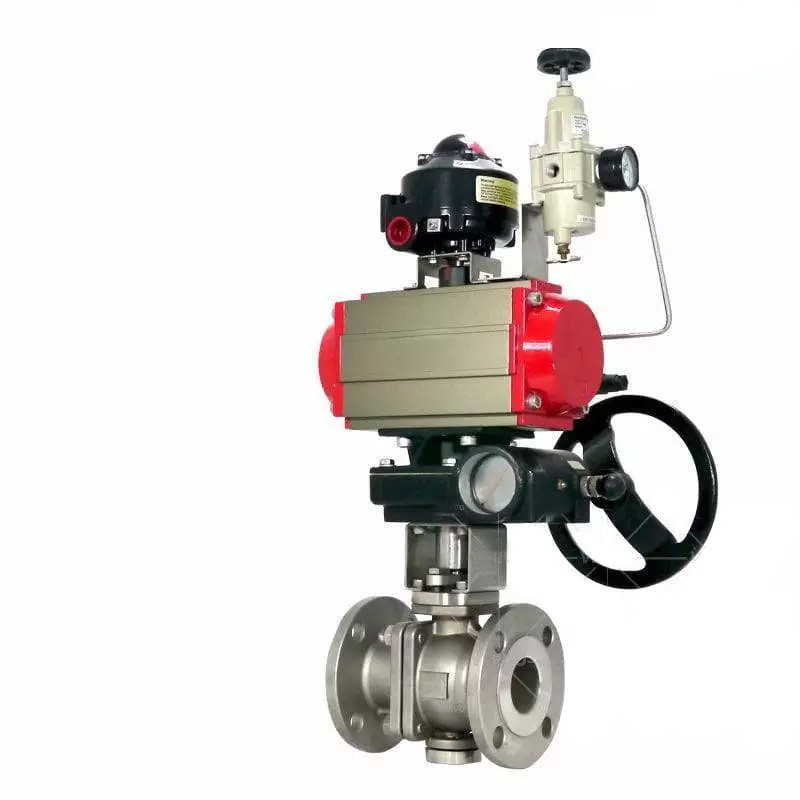

API 6D Ball Valve, Floating, 6 Inch, 300 LB, ASTM A351 CF8M
Key Specifications / Features
Model No.: WV-240108-FBV-02 Hits: 25
Welcome to our premier API 6D Ball Valve production line, where excellence and reliability converge. Our ball valve, meticulously crafted, features stainless steel ASTM A351 CF8M construction, ensuring superior corrosion resistance and durability. With a substantial 6-inch size and Class 300 LB rating, it is designed for robust performance in demanding applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design Standard: API 6D
Body Material: ASTM A351 CF8M
Nominal Diameter: 6 Inch, DN150, 150MM
Pressure: Class 300 LB, CL300, PN50
End Connection: Flange RF
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: Floating Type Metal Seated
Product Range
Body Material: ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M
Nominal Size: 1/2-8 Inch (DN15-DN200)
Pressure Rating: JIS 10, JIS 20K, ASME Class 150 LB, Class 300 LB, Class 600 LB, DIN PN16, PN40, PN100
End Connections: RF
Temperature Range: -20℉ - 932℉ (-29℃ - 500℃), higher temperature on request.
Face-to-face Dimensions: JIS B2002, ASME B16.10, EN 558 Series 5, Series 14, Series 15
Flanged Dimensions: JIS B2220, ASME B16.5, EN 1092-1
Body Pressure Test: JIS B2003, ASME B16.34, API 598, EN 12266-1
Seat Leakage Test: ANSI/FCI70-2 Class V in standard, Class VI in option
Casting: MSS-SP-25, MSS-SP-55
Fire Safe Design: Certificated according to ISO 10497
Body Material: ASTM A351 CF8M
Nominal Diameter: 6 Inch, DN150, 150MM
Pressure: Class 300 LB, CL300, PN50
End Connection: Flange RF
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: Floating Type Metal Seated
Product Range
Body Material: ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M
Nominal Size: 1/2-8 Inch (DN15-DN200)
Pressure Rating: JIS 10, JIS 20K, ASME Class 150 LB, Class 300 LB, Class 600 LB, DIN PN16, PN40, PN100
End Connections: RF
Temperature Range: -20℉ - 932℉ (-29℃ - 500℃), higher temperature on request.
Face-to-face Dimensions: JIS B2002, ASME B16.10, EN 558 Series 5, Series 14, Series 15
Flanged Dimensions: JIS B2220, ASME B16.5, EN 1092-1
Body Pressure Test: JIS B2003, ASME B16.34, API 598, EN 12266-1
Seat Leakage Test: ANSI/FCI70-2 Class V in standard, Class VI in option
Casting: MSS-SP-25, MSS-SP-55
Fire Safe Design: Certificated according to ISO 10497
