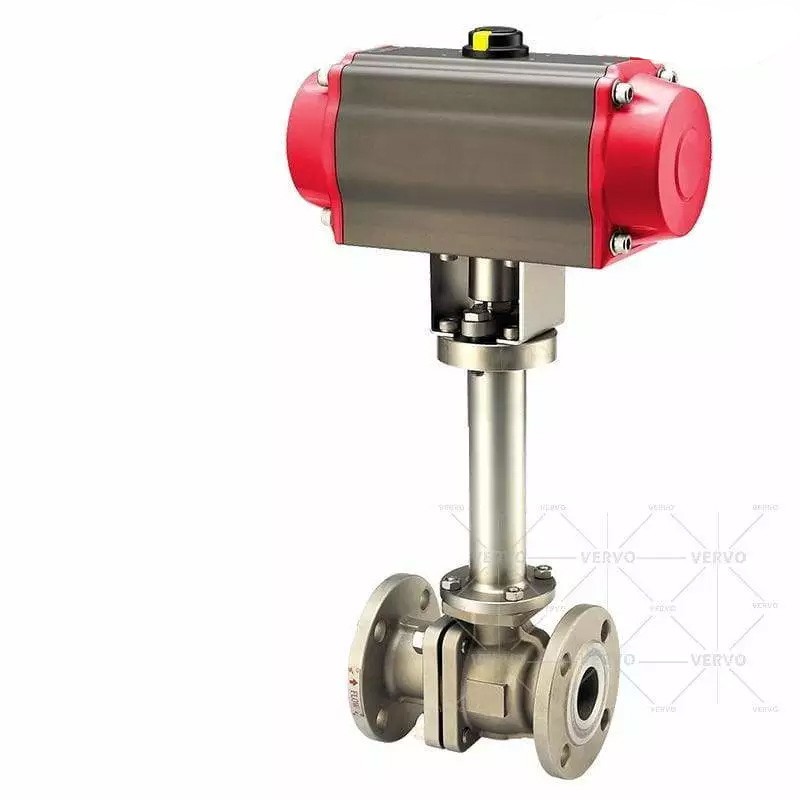

Pneumatic Cryogenic Ball Valve, ASTM A351 CF8M, 1 IN, 300 LB
Key Specifications / Features
Model No.: WV-240103-FBV-06 Hits: 8
Experience superior control in cryogenic environments with our Pneumatic Actuated Cryogenic Ball Valve. Crafted to perfection, this valve features a 1-inch size, Class 300 LB rating, 2 Piece construction, and utilizes ASTM A351 CF8M material. With API 6D compliance, DN25, PN50 specifications, RF End, Metal Seat, and an Extended Stem, our valve delivers precision and reliability for critical applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design Standard: API 6D
Body Material: ASTM A351 CF8M
Nominal Diameter: 1 Inch, DN25, 25MM
Pressure: Class 300 LB, CL300, PN50
End Connection: 2PC Flange RF
Construction: Full Bore
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: Pneumatic Actuated Cryogenic Ball Valve, Metal Seat Floating Type, Extended stem, Spring-loaded design, Anti-static design, Anti-blowout stem design, ISO 5211 Mounting Pad design
Product Range
Body Material: ASTM A352 LCB, ASTM A352 LCC, ASTM A352 LC9, ASTM A351 CF8, ASTM A351 CF8M
Nominal Size: 1/2-6 Inch (DN15-DN150)
Pressure Rating: JIS 10, JIS 20K, ASME Class 150 LB, Class 300 LB, DIN PN16, PN40
End Connections: RF
Temperature Range:
Soft Seat: -321 - 356℉ (-196 - 180℃)
Metal Seat: -321 - 661℉ (-196 - 350℃)
Face-to-face Dimensions: JIS B2002, ASME B16.10, EN 558 Series 14, Series 15
Flanged Dimensions: JIS B2220, ASME B16.5, EN 1092-1
Body Pressure Test: JIS B2003, API 598
Seat Leakage Test: BS 6364
Casting: MSS-SP-25, MSS-SP-55
Body Material: ASTM A351 CF8M
Nominal Diameter: 1 Inch, DN25, 25MM
Pressure: Class 300 LB, CL300, PN50
End Connection: 2PC Flange RF
Construction: Full Bore
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: Pneumatic Actuated Cryogenic Ball Valve, Metal Seat Floating Type, Extended stem, Spring-loaded design, Anti-static design, Anti-blowout stem design, ISO 5211 Mounting Pad design
Product Range
Body Material: ASTM A352 LCB, ASTM A352 LCC, ASTM A352 LC9, ASTM A351 CF8, ASTM A351 CF8M
Nominal Size: 1/2-6 Inch (DN15-DN150)
Pressure Rating: JIS 10, JIS 20K, ASME Class 150 LB, Class 300 LB, DIN PN16, PN40
End Connections: RF
Temperature Range:
Soft Seat: -321 - 356℉ (-196 - 180℃)
Metal Seat: -321 - 661℉ (-196 - 350℃)
Face-to-face Dimensions: JIS B2002, ASME B16.10, EN 558 Series 14, Series 15
Flanged Dimensions: JIS B2220, ASME B16.5, EN 1092-1
Body Pressure Test: JIS B2003, API 598
Seat Leakage Test: BS 6364
Casting: MSS-SP-25, MSS-SP-55
