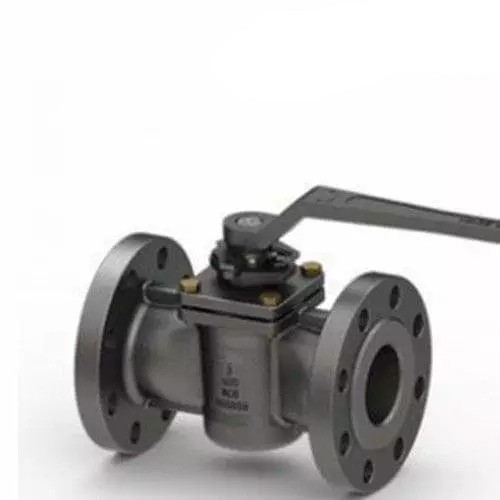

Pressure Balanced Plug Valve, ASTM A216 WCB, 3 Inch, 600 LB
Key Specifications / Features
Model No.: WV-240105-PBPV-05 Hits: 35
Discover precision in the Pressure Balanced Plug Valve from our factory. Crafted with ASTM A216 WCB, this 3-inch valve boasts a Class 600 LB rating, DN80 specifications, and conforms to ASME B16.34, API 6D, and API 599 standards. Its anti-static structure ensures reliable performance, making it an ideal choice for critical applications.
Request a quoteTags
Detail Information
Design Standard: ASME B16.34, API 6D, API 599
Body Material: ASTM A216 WCB
Nominal Diameter: 3 Inch
Pressure: Class 600 LB
End: ASME B16.5, ASME B16.25
Face To Face: ASME B16.10, API 6D
Test And Inspection: ISO 5208, API 6D
Feature: Pressure Balanced Plug Valve
Product Range
Pressure: Class 150-1500 LB
Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M
Design & Manufacture Conform To API 6D, ISO 14313, ASME B16.34
Connection Dimension Conforms To ASME B16.5, DIN EN 1092
Fire Resistance Design Conforms To API 607, ISO 10497
Inspection & Test Conforms To API 6D, ISO 5208, API 598
Material Conforms To ISO 15156
Materials of parts
Plug Valve Introduction
Body Material: ASTM A216 WCB
Nominal Diameter: 3 Inch
Pressure: Class 600 LB
End: ASME B16.5, ASME B16.25
Face To Face: ASME B16.10, API 6D
Test And Inspection: ISO 5208, API 6D
Feature: Pressure Balanced Plug Valve
Product Range
Pressure: Class 150-1500 LB
Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M
Design & Manufacture Conform To API 6D, ISO 14313, ASME B16.34
Connection Dimension Conforms To ASME B16.5, DIN EN 1092
Fire Resistance Design Conforms To API 607, ISO 10497
Inspection & Test Conforms To API 6D, ISO 5208, API 598
Material Conforms To ISO 15156
Materials of parts
| Body Cock body Stem Lower cover O-ring Stud Nut Gasket |
WCB/LCB/CF8M/CF8/CF3M/CF3/WC6/WC9/CD3MN WCB+N/CA15/4140+ENP/CF8M/CF8/CF3M/CF3/CD3MN F6a/4140+ENP/F304/F316/F304L/F316L/F51 A105/LF2/F304/F316/F304L/F316L/F51 VITON/NBR B7M/B8M/L7M/B16M 2HM/8M/7M/4M Flexible graphite+304/PTFE/304 |
| *Materials could be choosed according to customers' requirements & working conditions. | |
Plug Valve Introduction
| 1. Usage It is mainly used for the storage and transportation of oil and gas in the chemical industry, metallurgy, paper making, food processing, shipbuilding and other industries used to open or close, and pneumatic and electrical devices can also achieve the long-distance operation, to ensure personal safety. |
||||||||||||||||||
| 2. Features 1) Lockup device, manual operation, in order to prevent misoperation, the valve can be equipped with a padlock device. 2) Anti-static structure, when a fire breaks out, the metal seal forms to prevent significant leakage of media 3) Valve body and stem can finish emergency injection seal, through the grease injection valve, the stop-leak compound can achieve a short-time seal, therefore buying time handling the scene. Additional information
|
