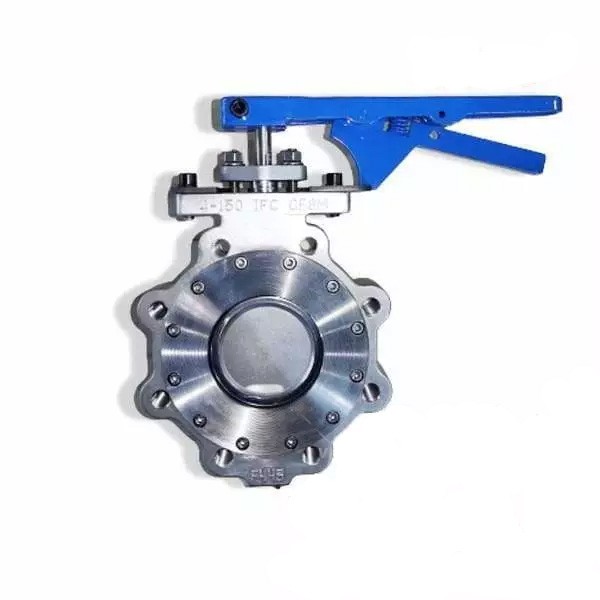

ASTM A351 CF8M Butterfly Valve, Double Offset, 4 IN, 150 LB
Key Specifications / Features
Model No.: WV-240105-DOBFV-04 Hits: 5
As a trusted fabricator specializing in butterfly valves, we proudly present the ASTM A351 CF8M Butterfly Valve. Compliant with API 609 standards, this valve is designed for optimal performance in diverse applications. With a 4-inch size, DN100 dimensions, Class 150 LB rating, and PN20 pressure, it features a PTFE seat for enhanced reliability.
Request a quoteTags:
Detail Information
Design Standard: API 609
Body Material: ASTM A351 CF8M
Nominal Diameter: 4 Inch, DN100, 100 MM
Pressure: Class 150 LB, CL150, PN20
End Connection: LUG Type End
Face To Face: API 609
Test and Inspection: API 598
Driving Mode: Worm Gear
Valve Stem: Normal
Material of Seal Surface: Soft Sealed
Working Temperature: -35℃ - 150℃
Product Range
Size: 2 Inch - 64 Inch, DN50-DN1600
Structure: Double Eccentric, Double Offset
Body: Carbon Steel, Stainless Steel
Disc: Carbon Steel, Stainless Steel, Monel
Shaft: Stainless Steel, Monel
Seat: PTFE, RPTFE, PPL
Working Temperature: Low Temperature (T<150℃)
Operator: Worm Gear, Electric Actuator, Pneumatic Actuator
Body Material: ASTM A351 CF8M
Nominal Diameter: 4 Inch, DN100, 100 MM
Pressure: Class 150 LB, CL150, PN20
End Connection: LUG Type End
Face To Face: API 609
Test and Inspection: API 598
Driving Mode: Worm Gear
Valve Stem: Normal
Material of Seal Surface: Soft Sealed
Working Temperature: -35℃ - 150℃
Product Range
Size: 2 Inch - 64 Inch, DN50-DN1600
Structure: Double Eccentric, Double Offset
Body: Carbon Steel, Stainless Steel
Disc: Carbon Steel, Stainless Steel, Monel
Shaft: Stainless Steel, Monel
Seat: PTFE, RPTFE, PPL
Working Temperature: Low Temperature (T<150℃)
Operator: Worm Gear, Electric Actuator, Pneumatic Actuator
