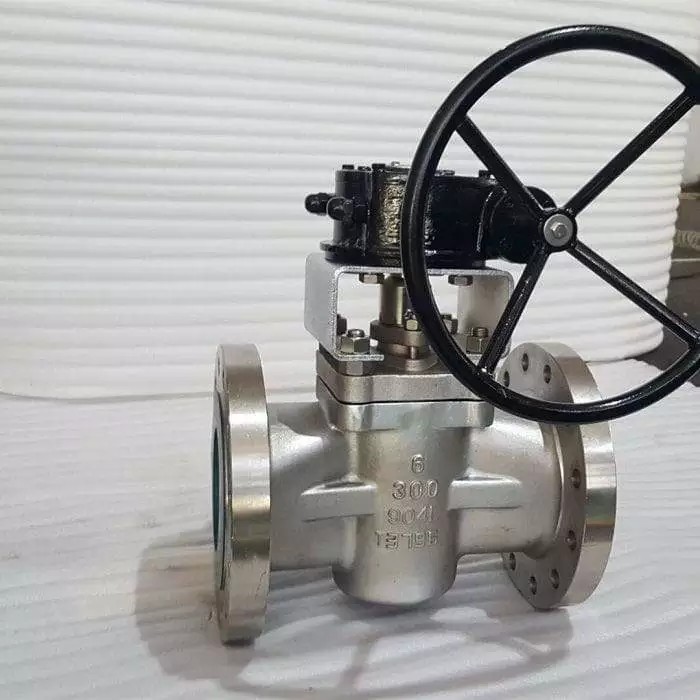

API 599 Sleeved Plug Valve, SS 904L, 6 Inch, Class 300 LB
Key Specifications / Features
Model No.: WV-240105-SPV-02 Hits: 31
Explore our cutting-edge API 599 and API 6D Sleeved Plug Valve, featuring a robust design in SS 904L (ASTM A182 F904L). With a substantial 6-inch size, Class 300 LB rating, and DN150 specifications, it ensures optimal performance. The bolted bonnet and gearbox operation enhance reliability, while the RF flange end simplifies installation.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design: API 6D, API 599
Body: SS 904L, ASTM A182 F904L
Nominal size: 6 Inch.
Nominal class: 300 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Stainless Steel, SS 904L, ASTM A182 F904L.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 - 2500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
Body: SS 904L, ASTM A182 F904L
Nominal size: 6 Inch.
Nominal class: 300 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Stainless Steel, SS 904L, ASTM A182 F904L.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 - 2500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
| Product | Plug valve. |
| Nominal diameter | 1/2 Inch - 40 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | 904L. |
| Design standard | API6D,API599 |
| Connection end | Flange. |
| Test standard | API598. |
| Package | Plywood |
| Operation | Lever, Gear box |
