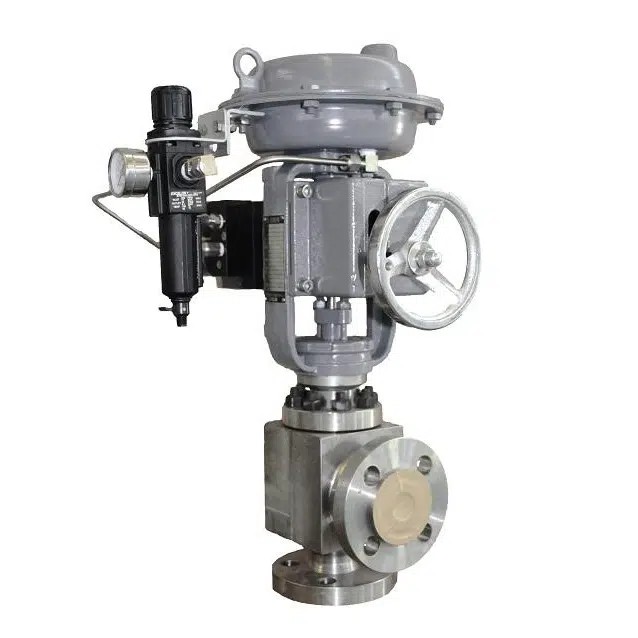

Pneumatic Actuated Top Guided Single-Seated Control Valve
Key Specifications / Features
Model No.: WV-240130-CTV-01 Hits: 1
Manufacturer of Pneumatic Actuated Top Guided Single-Seated Angle Control Valve in sizes ranging from 1/2 to 2 inches. Suitable for Class 150-2500 LB applications, constructed with ASTM A216 WCB material and SS 316 + Stellite Plug for enhanced durability. Features flanged end connections.
Request a quoteTags:
Detail Information
Size: 1/2-2 Inch
ANSI Class: 150-2500 LB
Body Materials: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3
Temperature Range: -196 - +550°C
Connections: Flanged (FF, RF, RJ, RTJ),Socket Weld, Butt Weld(SW, BW)
Plug Materials: Stainless Steel 316, 316 + Stellite, 316 + RTFE etc.
Seat Leakage: ANSI Class IV (Cv×0.01%)
Rangeability: 30:1-10:1
Flow Characteristics: Linear, EQ
ANSI Class: 150-2500 LB
Body Materials: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3
Temperature Range: -196 - +550°C
Connections: Flanged (FF, RF, RJ, RTJ),Socket Weld, Butt Weld(SW, BW)
Plug Materials: Stainless Steel 316, 316 + Stellite, 316 + RTFE etc.
Seat Leakage: ANSI Class IV (Cv×0.01%)
Rangeability: 30:1-10:1
Flow Characteristics: Linear, EQ
