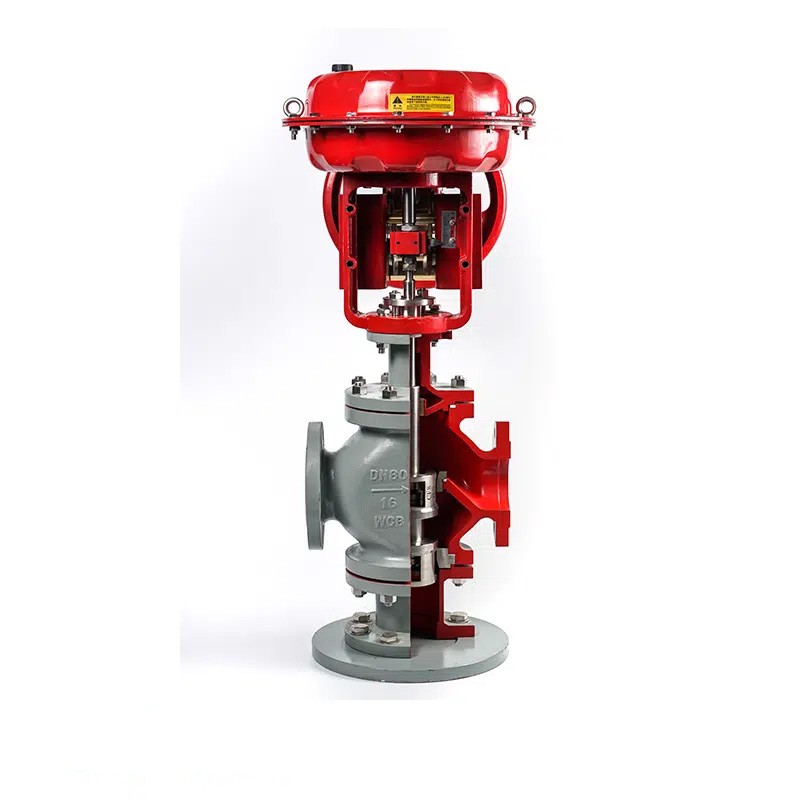

3 Way Globe Control Valve, A217 WC6, 3/4-14 Inch, 150-600 LB
Key Specifications / Features
Model No.: WV-240130-CTV-02 Hits: 2
Leading manufacturer of Three-Way Diverting/Mixing Globe Control Valve, designed with ASTM A217 WC6 material. Available in sizes ranging from 3/4 to 14 inches, suitable for Class 150-600 LB applications. Features include a bolted gland, plain or extension bonnet, and RF flange end connections.
Request a quoteTags:
Detail Information
Size: 1/2-2 Inch
ANSI Class: 150-600 LB
Body Materials: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3
Temperature Range: -196 - +550°C
End connection: FF, RF, RJ, LG, SW, BW
Connection Standards: ANSI B16.5, JIS B2201, JB/T 79.1, JB/T79.2
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet(-60 to -29 ℃ or over 230°C)
Bellows Seal
Gland type: Bolted Gland
Packing: V-shaped PTFE, PTFE, Flexible graphite
Gasket material: Stainless steel, copper, aluminum
ANSI Class: 150-600 LB
Body Materials: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3
Temperature Range: -196 - +550°C
End connection: FF, RF, RJ, LG, SW, BW
Connection Standards: ANSI B16.5, JIS B2201, JB/T 79.1, JB/T79.2
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet(-60 to -29 ℃ or over 230°C)
Bellows Seal
Gland type: Bolted Gland
Packing: V-shaped PTFE, PTFE, Flexible graphite
Gasket material: Stainless steel, copper, aluminum
