In the world of fluid control systems, wafer ball valves have emerged as a versatile and efficient solution for a wide range of applications. Known for their compact design, lightweight construction, and excellent sealing performance, these valves are particularly well-suited for environments where space is limited, weight reduction is critical, or rapid installation is required. This article explores the features, advantages, and applications of wafer ball valves, providing a comprehensive guide to understanding why they are a preferred choice in industries such as oil and gas, chemical processing, pharmaceuticals, and more.
What Are Wafer Ball Valves?

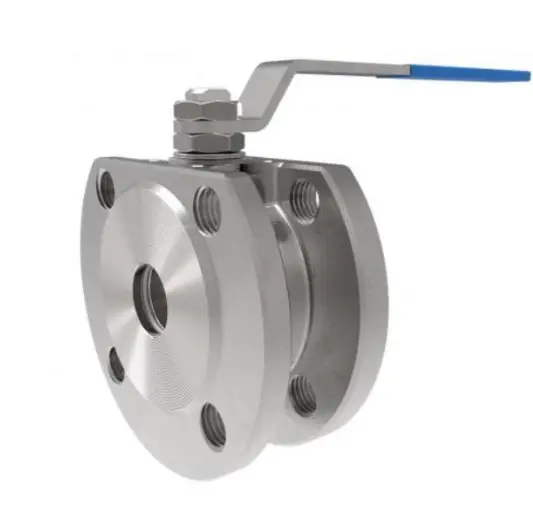

Wafer ball valves are a type of quarter-turn valve designed to control the flow of fluids in pipelines. Unlike traditional flanged ball valves, wafer ball valves are installed by clamping the valve body between two pipe flanges using bolts. This design eliminates the need for additional flanges and bolted connections, resulting in a more compact and lightweight valve. Wafer ball valves are available in both 2-way and 3-way configurations, making them suitable for a variety of applications.
These valves are often equipped with pneumatic or electric actuators, allowing for automated operation. Additional accessories, such as switchboxes, solenoid valves, air-filter regulators, and electro-pneumatic positioners, can be integrated to enhance functionality. Wafer ball valves are fully assembled and tested before delivery, ensuring reliable performance in demanding environments.
Advantages of Wafer Ball Valves
Compact Design
The wafer-type design of these valves allows them to be installed between two pipe flanges, significantly reducing the overall footprint. This makes wafer ball valves ideal for applications where space is at a premium, such as the bottom of tanks or in confined spaces.
Lightweight Construction
By eliminating the need for flanges and bolted connections, wafer ball valves are much lighter than traditional flanged ball valves. This reduces the load on the pipeline system and simplifies transportation and installation.
Easy Installation
Installing a wafer ball valve is straightforward. The valve is simply clamped between the pipe flanges and secured with bolts. This design minimizes installation time and costs, making it an excellent choice for projects with tight deadlines.
Excellent Sealing Performance
Wafer ball valves are designed with high-quality sealing materials, ensuring leak-free operation even in high-pressure or high-temperature environments. This makes them suitable for applications requiring stringent sealing requirements.
Low Flow Resistance
The internal flow passage of wafer ball valves is designed to minimize resistance, allowing fluids to pass through with minimal energy loss. This enhances system efficiency and reduces operational costs.
Easy Maintenance
Maintenance and servicing of wafer ball valves are simple and hassle-free. The valve can be easily removed from the pipeline by loosening the bolts, allowing for quick inspection and repair. The straightforward design also reduces downtime during maintenance.
Applications of Wafer Ball Valves
Wafer ball valves are widely used across various industries due to their versatility and reliability. Some of the key applications include:
Oil and Gas Industry
In the oil and gas sector, wafer ball valves are used to control the flow of crude oil, natural gas, and other hydrocarbons. Their compact design and excellent sealing performance make them ideal for offshore platforms, refineries, and pipelines.
Chemical Processing
Chemical plants often handle corrosive and hazardous fluids that require precise flow control. Wafer ball valves are well-suited for these applications due to their durability, leak-proof design, and resistance to chemical corrosion.
Pharmaceutical Industry
In pharmaceutical manufacturing, maintaining a sterile and contamination-free environment is critical. Wafer ball valves are used to regulate the flow of liquids and gases in processes such as fermentation, filtration, and sterilization.
Food and Beverage Industry
Wafer ball valves are commonly used in the food and beverage industry to control the flow of ingredients, cleaning solutions, and finished products. Their easy-to-clean design and compliance with hygiene standards make them a popular choice.
Water and Wastewater Treatment
In water treatment plants, wafer ball valves are used to manage the flow of water, chemicals, and sludge. Their low flow resistance and reliable sealing performance ensure efficient operation in these demanding environments.
Power Generation
Power plants rely on wafer ball valves to regulate the flow of steam, cooling water, and other fluids in turbines and boilers. Their ability to withstand high temperatures and pressures makes them a reliable choice for this industry.
When to Choose Wafer Ball Valves?
Wafer ball valves are an excellent choice in the following scenarios:
Limited Space Applications
In pipeline systems with space constraints, the compact design of wafer ball valves allows for efficient use of available space. This is particularly beneficial in machinery internals, narrow pipe passages, or high-density layouts.
Lightweight Applications
For industries where reducing the overall weight of the pipeline system is essential, such as maritime, aerospace, or mobile equipment, the lightweight construction of wafer ball valves offers significant advantages.
Frequent Maintenance and Inspection
In environments where regular maintenance and inspection are required, the easy installation and disassembly features of wafer ball valves simplify the process, reducing downtime and operational costs.
Rapid Installation Projects
For urgent projects or situations requiring quick installation, the straightforward installation process of wafer ball valves saves time and ensures rapid deployment.
Key Features of Wafer Ball Valves
Robust Construction
Wafer ball valves are made from high-quality materials such as stainless steel, carbon steel, or exotic alloys, ensuring durability and resistance to corrosion.
Automation Compatibility
These valves can be equipped with pneumatic or electric actuators, enabling automated operation and integration into control systems.
Versatile Accessories
Additional accessories, such as switchboxes, solenoid valves, and positioners, enhance the functionality and adaptability of wafer ball valves.
Compliance with Standards
Wafer ball valves are designed and tested to meet international standards, ensuring reliability and safety in various applications.
The Future of Wafer Ball Valves
As industries continue to prioritize efficiency, safety, and sustainability, the demand for wafer ball valves is expected to grow. Advances in materials science and manufacturing technologies will further enhance the performance and durability of these valves. Additionally, the integration of smart technologies, such as IoT-enabled sensors and predictive maintenance systems, will revolutionize the way wafer ball valves are monitored and maintained.
Conclusion
Wafer ball valves are a compact, efficient, and reliable solution for modern fluid control systems. Their unique design, lightweight construction, and excellent sealing performance make them ideal for a wide range of applications, from oil and gas to pharmaceuticals and water treatment. By choosing wafer ball valves, industries can achieve significant space and weight savings, simplify installation and maintenance, and ensure reliable operation in demanding environments.
As technology continues to evolve, wafer ball valves will play an increasingly important role in enhancing the efficiency and sustainability of industrial processes. Whether you're dealing with space constraints, frequent maintenance requirements, or rapid installation needs, wafer ball valves offer a versatile and dependable solution for your fluid control challenges.
