Valves are crucial components in fluid control systems, managing the flow of liquids and gases across a wide range of industries. Among the various types of valves, the eccentric plug valve stands out due to its unique design and efficient performance in challenging applications. With its distinct rotary motion and specialized flow-regulating features, this valve type is especially suited for handling erosive and coking fluids, providing reliable service where precision control and durability are paramount.
In this article, we'll explore what an eccentric plug control valve is, how it operates, and the key industries and applications where it is commonly used.

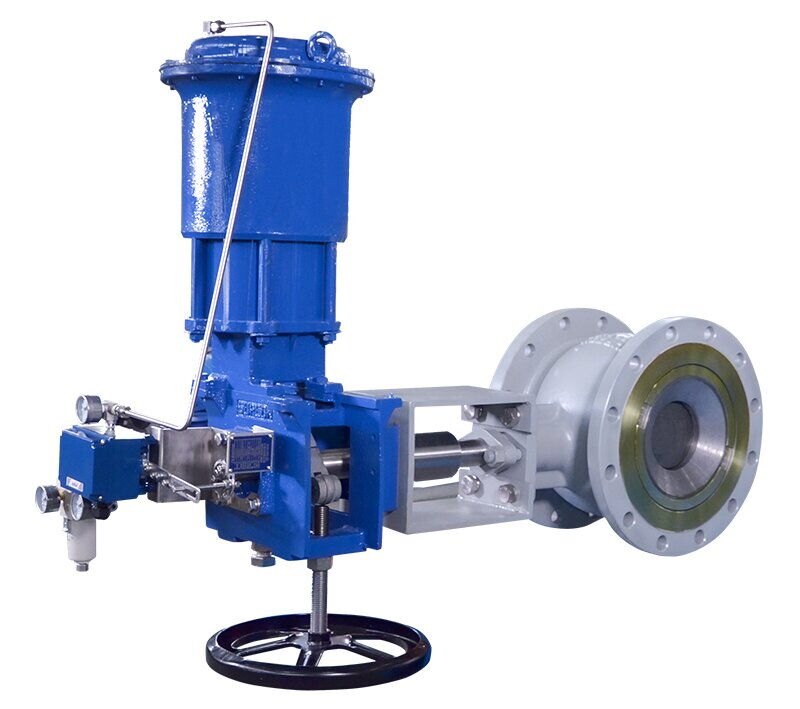

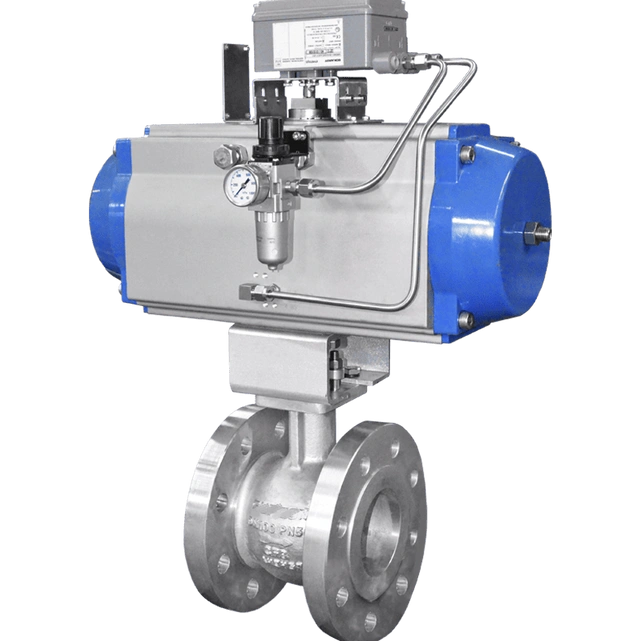

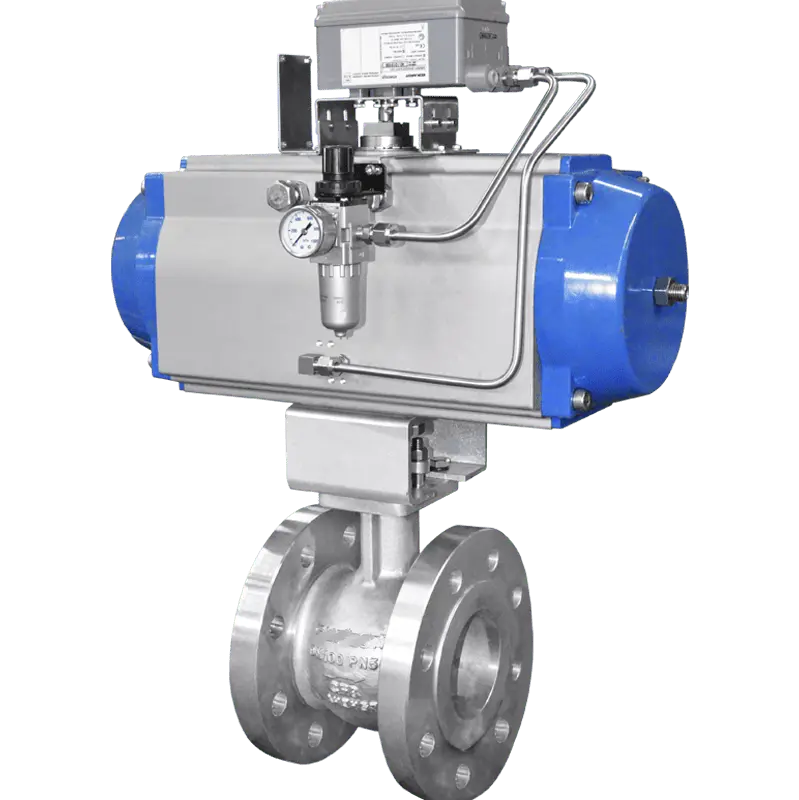

An eccentric plug control valve is a type of rotary control valve that uses a plug-shaped flow-regulating member, which moves in an eccentric path as it rotates within the valve body. The design of the valve enables the plug to have no contact with the valve seat until it approaches the shutoff position, making it ideal for throttling or on/off control.
The key feature of this valve is the plug’s eccentric movement, which allows it to “cam” into its seat as it turns, dynamically aligning the seating surfaces to achieve a reliable shutoff. This distinctive motion results in reduced wear, preventing damage from abrasive or sticky fluids, and ensures long-lasting, effective sealing.
Though the eccentric plug valve shares some functional similarities with a globe valve, its rotary action and specialized sealing method make it a unique solution for certain applications. This type of valve is also sometimes referred to as a rotary globe valve, thanks to its ability to provide precise flow regulation through a rotating plug rather than a traditional stem-guided globe valve mechanism.
The operation of an eccentric plug valve relies on its distinctive eccentric design. The plug, which is the primary flow-control element, is offset from the centerline of the valve body, causing it to move in a non-concentric (eccentric) path when rotated. Here's a breakdown of its operation:
As the valve is opened or closed, the plug rotates about its axis. This rotational motion does not immediately make contact with the valve seat, allowing the fluid to flow with minimal interference. The eccentric path means the plug stays clear of the seat until a few degrees from the shutoff position.
As the valve continues to rotate, the plug begins to make contact with the seat. Due to the eccentric nature of the plug, the seating surfaces align dynamically during this contact, ensuring a reliable seal and achieving shutoff without significant friction. This "cam" action helps avoid wear and tear commonly associated with other valve types, especially when dealing with abrasive or sticky substances.
The eccentric plug valve can be used in both throttling and on/off control applications. In throttling mode, the plug's rotation precisely adjusts the flow rate, allowing for fine control of the fluid. In on/off applications, the valve provides a quick and effective shutoff by rotating the plug into a closed position.
The design of the valve ensures that the plug seats effectively under pressure, providing a tight seal when closed. This is particularly important for handling aggressive fluids such as slurries, coking agents, or corrosive substances, where leaks could cause operational issues or safety hazards.
Eccentric plug valves are especially well-suited for handling hard-to-manage fluids, such as slurries, erosive fluids, and sticky or coking liquids. Their robust construction and dynamic sealing mechanism make them ideal for a variety of challenging industrial applications. Here are some common sectors where eccentric plug valves are used:
In the mining industry, eccentric plug valves are used to control the flow of slurry, which can be a combination of water, chemicals, and solid particles like sand or minerals. The abrasive nature of slurries makes it essential to use valves with durable materials and designs that reduce wear and maintain efficient operation. The eccentric plug valve’s ability to handle these difficult fluids with minimal friction and wear makes it a popular choice for slurry systems in mining operations.
The petroleum refining industry often deals with fluids that are high in viscosity, corrosive properties, or have the potential to coke. Eccentric plug valves are particularly well-suited for applications involving heavy oils, bitumen, or other complex mixtures. They help ensure precise control over the flow of these substances during refining processes, especially when dealing with high temperatures and pressures that require reliable shutoff and minimal maintenance.
In power plants, eccentric plug valves are commonly used to control the flow of fluids like steam, water, and chemicals in systems that require precise flow regulation. Their ability to provide quick shutoff and steady throttling makes them useful in applications ranging from cooling water control to chemical injection in boilers and reactors. Their rugged design ensures reliability under demanding operational conditions, making them a trusted valve choice for power generation facilities.
The pulp and paper industry requires valves that can handle aggressive fluids like pulp slurries, which often contain high concentrations of abrasive solids. Eccentric plug valves are designed to withstand such conditions and provide reliable control over these viscous and often abrasive fluids. By ensuring smooth, uninterrupted flow regulation, they help improve the efficiency of pulp processing and paper manufacturing.
Eccentric plug valves are used in chemical processing plants, where they manage the flow of a wide range of chemicals, including corrosive liquids, slurry-like substances, and high-viscosity compounds. The ability to effectively shut off flow and regulate the amount of fluid moving through the system ensures the safe and efficient processing of chemicals under high pressures and temperatures.
In water treatment plants, valves must regulate the flow of water, sludge, and chemicals used in purification processes. The unique design of the eccentric plug valve ensures it can handle the various fluid dynamics associated with water treatment. It provides consistent control over water and slurry flow, ensuring the effectiveness of filtration and chemical treatment operations.
The eccentric motion of the plug allows for smooth, reliable flow regulation, reducing turbulence and pressure drops in the system.
These valves are built with rugged, metal-trim components that ensure long-lasting performance, even when handling abrasive, erosive, or coking fluids.
The plug’s cam-like action provides a dynamic alignment of the seat and plug surfaces, leading to tight shutoff and reducing the risk of leaks.
The reduced friction between the plug and seat minimizes wear, resulting in lower maintenance needs compared to other valve types.
Suitable for both throttling and on/off control, eccentric plug valves can be used in a wide range of industries and applications.
Eccentric plug valves are a specialized solution for industries dealing with challenging fluids, such as slurries, coking agents, and other abrasive or sticky materials. Their unique design and dynamic sealing capabilities provide precise control, minimal wear, and reliable operation, making them indispensable in a variety of sectors, including mining, petroleum refining, power generation, and chemical processing.
With their rugged construction, these valves offer a robust and durable solution for applications requiring both throttling and shutoff control. As industries continue to seek more efficient and reliable ways to manage fluid flow, eccentric plug valves will remain a key component in the arsenal of flow control technologies.
