In industrial fluid control systems, efficiency and ease of maintenance are key factors in determining long-term operational reliability. Among the various valve designs available, top entry ball valves have gained prominence for their unique ability to simplify servicing without disrupting connected pipelines.
Unlike side entry ball valves, which require complete removal from the line for internal repairs, top entry ball valves allow technicians to perform maintenance directly from the top. This innovative design ensures the valve body remains securely installed within the pipeline, reducing downtime, minimizing labor, and preventing costly interruptions in production processes.
Top entry ball valves are especially favored in industries such as oil and gas, petrochemical, chemical processing, power generation, and water treatment, where continuous operation and high reliability are non-negotiable. Their compact, maintenance-friendly construction allows for quick inspection, cleaning, and replacement of internal components like the ball, seats, and seals—all without disassembling the piping system.

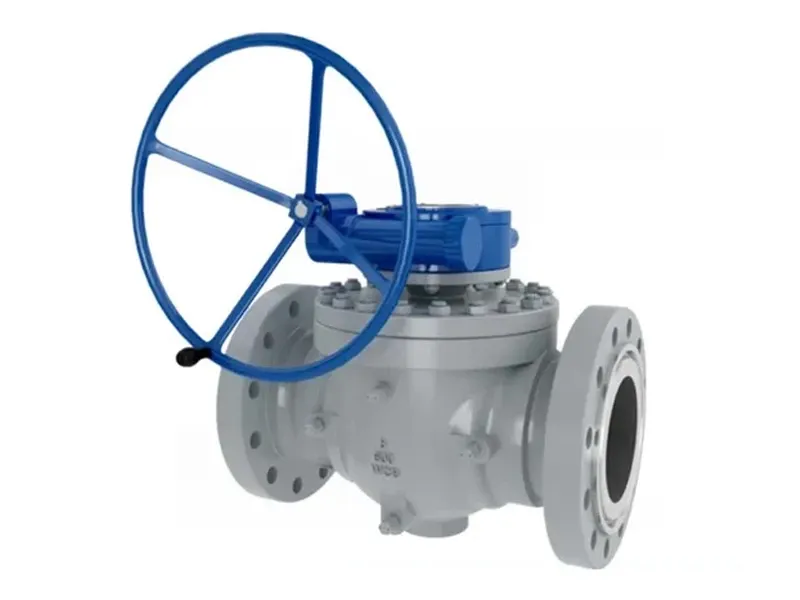

A top entry ball valve operates similarly to a standard ball valve, using a rotating ball with a central bore to control fluid flow. The distinguishing feature, however, lies in its body structure. It consists of a single-piece body with a removable bonnet or cover at the top, which provides direct access to internal components.
When maintenance or inspection is required, technicians simply remove the top cover and extract the ball and seat assembly vertically. This design eliminates the need to disconnect flanges or weld joints, allowing the valve to stay in-line and operationally integrated with the system.
Internally, top entry ball valves are equipped with precision-engineered seats and seals, ensuring bubble-tight shutoff and low operating torque. They can be designed for floating or trunnion-mounted ball configurations, depending on the pressure rating and application.
In high-pressure or large-size installations, trunnion-mounted designs are preferred due to their ability to withstand higher loads and maintain smooth operation under demanding conditions.
One of the defining benefits of a top entry ball valve is its ability to undergo in-line repair and inspection. Operators can service internal parts without removing the valve from the pipeline. This feature is particularly critical in industries where process continuity is essential—such as refineries, offshore platforms, and chemical plants.
By minimizing the need for pipe disassembly, these valves reduce maintenance time by up to 70% compared to traditional side-entry designs. They also help avoid costly production halts, which can lead to significant financial losses in high-output facilities.
In large-diameter systems, removing a valve for maintenance often requires lifting equipment, pipe cutting, and extensive shutdown planning. Top entry ball valves eliminate these challenges, offering a safer, faster, and more cost-effective maintenance solution.
Top entry ball valves are engineered to handle a wide range of fluids, pressures, and temperatures. Manufacturers such as Weldon produce these valves using premium-grade materials, including stainless steel, carbon steel, duplex stainless steel, and special alloys like Inconel, Hastelloy, and Monel.
These materials provide excellent resistance against corrosion, abrasion, and high-temperature exposure, ensuring reliable operation in chemically aggressive or high-pressure environments.
For example:
Stainless steel top entry ball valves are ideal for corrosive chemical and marine applications.
Carbon steel variants offer superior strength for oil and gas pipelines.
Alloy and duplex grades are used in situations demanding both mechanical durability and corrosion resistance.
Each material is carefully selected based on the process medium, operating pressure, and temperature range to ensure long service life and consistent sealing performance.
Safety is a critical concern in any industrial operation, particularly when handling toxic, flammable, or corrosive fluids. Top entry ball valves help improve workplace safety by reducing the need to detach the valve from the line, which minimizes exposure to hazardous materials during maintenance.
In welded-in installations, their top-access design eliminates the requirement for pipe cutting and re-welding—activities that carry fire and explosion risks, especially in volatile applications.
Additionally, their tight shutoff capability and low-leakage performance help prevent environmental contamination and ensure compliance with safety regulations such as API 607 (fire-safe design) and ISO 15848 (fugitive emission standards).
By minimizing potential leak paths, these valves provide superior sealing integrity, making them an excellent choice for safety-critical applications.
Despite their heavy-duty performance, top entry ball valves maintain a compact and space-efficient structure, which makes them suitable for tight or congested installation areas. Their single-body design reduces the number of external joints and potential leak points.
In addition, the valve’s internal geometry ensures low flow resistance and a smooth flow path, reducing pressure loss across the system. This not only enhances process efficiency but also extends the valve’s operational life.
Because the valve components can be serviced directly from the top, the overall layout of the piping system remains streamlined, with fewer flanged connections and less mechanical stress.
Although top entry ball valves may have a higher initial purchase cost than side entry valves, they offer significant long-term savings. Reduced downtime, minimal maintenance labor, and fewer spare parts translate into a lower total cost of ownership (TCO).
Their robust design extends operational life, meaning fewer replacements over time. In high-value industrial systems—especially those operating continuously—this longevity delivers a rapid return on investment.
For operators looking to optimize efficiency while maintaining high reliability, top entry ball valves present one of the most cost-effective long-term solutions available.
Both top entry and side entry ball valves perform the same primary function—regulating or isolating flow—but they differ significantly in structure, installation, and maintenance requirements.
|
Feature |
Top Entry Ball Valve |
Side Entry Ball Valve |
|
Body Design |
Single-piece body with top-access bonnet |
Two or three-piece split body |
|
Maintenance |
In-line maintenance; no need to remove from pipeline |
Requires valve removal for internal servicing |
|
Installation Cost |
Higher initial cost but lower long-term maintenance cost |
Lower initial cost but higher downtime expenses |
|
Typical Application |
Critical process systems, high-pressure, or welded pipelines |
General industrial applications, low to medium pressure |
|
Safety and Leak Protection |
Fewer joints; reduced leak potential |
More joints; higher leak risk in extreme conditions |
In short, top entry ball valves excel in applications where uptime, safety, and reliability are paramount, while side entry valves remain suitable for systems with simpler maintenance needs or where removal is not an issue.
Top entry ball valves find use in a wide variety of industries due to their durability, precision, and ease of maintenance. Their versatility allows them to handle everything from clean water to highly corrosive chemicals and high-pressure gases.
Key application sectors include:
Used in upstream, midstream, and downstream systems for isolating and controlling hydrocarbon flow.
Commonly installed in refineries, offshore drilling rigs, and LNG facilities.
Ideal for handling corrosive chemicals, acids, and solvents.
The in-line maintenance design ensures safe operation in systems requiring strict contamination control.
Applied in steam, cooling water, and condensate systems.
High-pressure resistance makes them suitable for turbine and boiler feedwater lines.
Used for regulating process water and effluent discharge systems.
Offers reliable shutoff and low-maintenance operation in continuous service environments.
When constructed with sanitary materials and polished internal finishes, these valves are suitable for cleanroom and hygienic processing applications.
Resistant to saltwater corrosion and designed to withstand harsh marine conditions.
Reputable manufacturers design top entry ball valves to comply with international standards, ensuring quality and safety across industries. Common design and testing standards include:
API 6D / ISO 14313 – Pipeline valves
ASME B16.34 – Valve pressure-temperature ratings
API 607 / API 6FA – Fire-safe design
ISO 15848 / TA-Luft – Fugitive emission standards
NACE MR0175 / ISO 15156 – Sulfide stress cracking resistance for sour gas applications
Compliance with these standards ensures that the valves meet global performance, safety, and environmental expectations.
Regular inspection and maintenance are essential for extending the service life of any valve. Top entry ball valves simplify these processes:
Depressurize the line and confirm isolation.
Remove the bonnet or cover at the top of the valve.
Extract the ball, seat, and stem assembly for inspection.
Clean or replace components as needed.
Reassemble and test for leaks before resuming operation.
This vertical maintenance process is significantly safer and faster than the lateral disassembly required for side-entry valves.
As industries increasingly adopt digital monitoring and smart control systems, top entry ball valves are evolving to include actuator integration, remote operation, and predictive maintenance capabilities.
Modern electric and pneumatic actuators can be paired with these valves for automated flow control, while smart sensors enable continuous condition monitoring—detecting wear, leaks, or torque changes before failures occur.
These innovations align with the global push toward Industry 4.0, enhancing both performance and reliability in automated process environments.
Top entry ball valves represent a technologically advanced and maintenance-efficient solution for industrial flow control. Their in-line serviceability, robust design, and superior safety make them indispensable for industries that demand continuous operation and minimal downtime.
By enabling direct top access to internal components, they streamline maintenance and reduce overall operational costs, while maintaining exceptional performance under harsh conditions.
Whether installed in oil refineries, chemical plants, or power stations, top entry ball valves continue to set the standard for efficiency, reliability, and long-term value in modern process engineering.
