In the world of industrial fluid control, butterfly valves have become one of the most commonly used and cost-effective solutions. They are compact, lightweight, and easy to operate, making them ideal for isolating and regulating flow in pipelines that handle water, air, gas, or other fluids. Among the different materials available for butterfly valve construction, ductile iron stands out for its exceptional strength, resilience, and versatility.

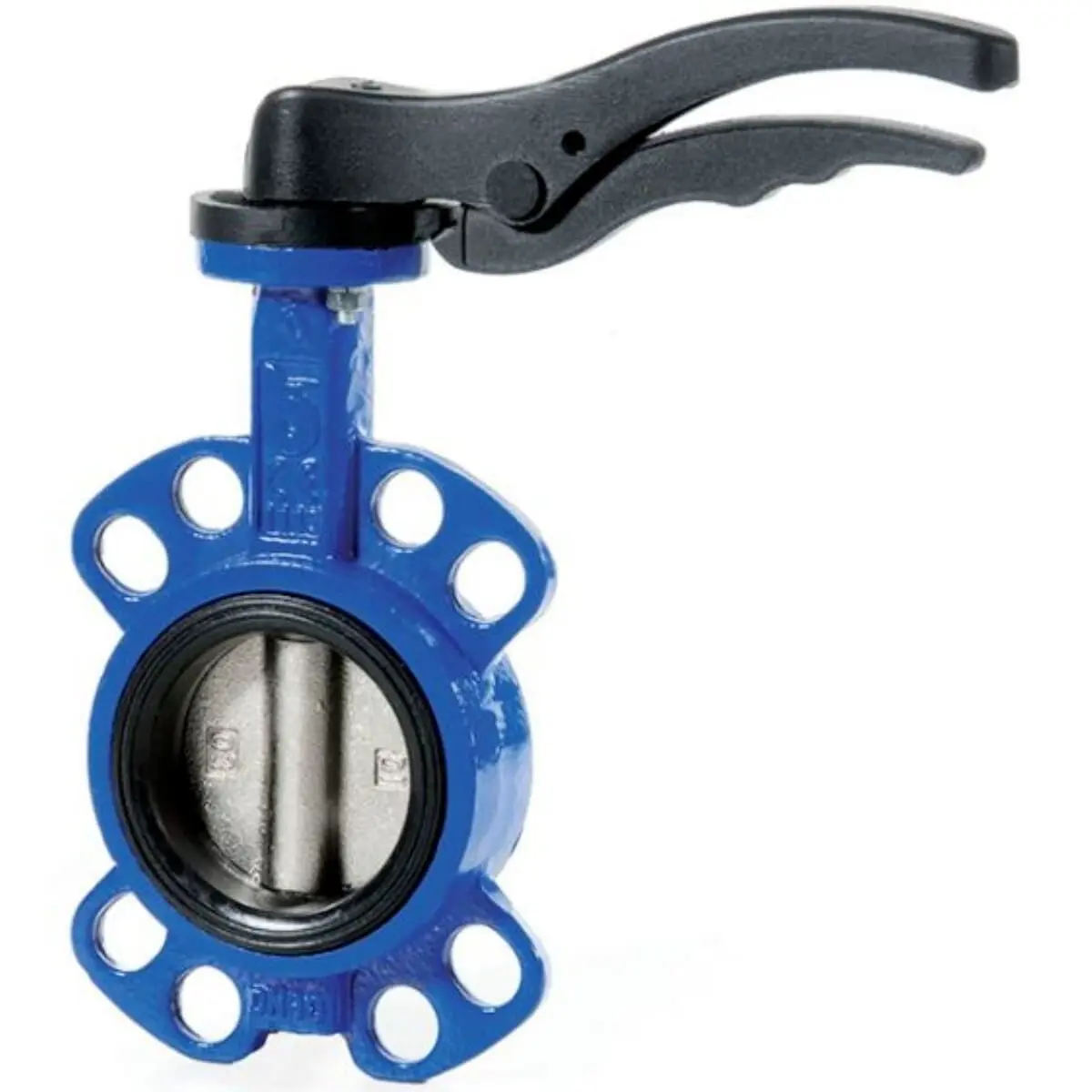

A ductile iron butterfly valve is a quarter-turn valve that utilizes a rotating disc to control the flow of fluids through a pipe. The disc, positioned in the center of the pipe, turns 90 degrees to fully open or close the passage. What sets these valves apart is their ductile iron body or disc, which combines the mechanical strength of steel with the corrosion resistance of iron. This makes them suitable for demanding applications where durability, pressure tolerance, and reliability are critical.
Ductile iron butterfly valves are extensively used in water distribution networks, wastewater treatment plants, HVAC systems, fire protection pipelines, irrigation, and general industrial processes. Their robust construction enables them to perform efficiently even in harsh environments, including high-pressure and temperature variations. In short, when a project demands a balance between performance, affordability, and longevity, ductile iron butterfly valves deliver an ideal solution.
To understand why ductile iron is preferred for butterfly valve construction, it helps to first appreciate the unique properties of this alloy. Ductile iron, also known as nodular cast iron or spheroidal graphite iron, is made by adding small amounts of magnesium to molten iron. This process changes the shape of the graphite inclusions from flakes (as found in gray cast iron) into tiny spheres or nodules.
This subtle but significant difference in microstructure gives ductile iron a unique combination of strength, toughness, and ductility—qualities that are rare in traditional cast iron. Unlike brittle gray iron, which can crack under stress, ductile iron can deform slightly under load, allowing it to absorb shock and resist fracture.
Key properties of ductile iron include:
High tensile strength: Typically between 60,000 and 100,000 psi.
Excellent yield strength: Around 40,000 psi, making it strong enough for high-pressure systems.
Impact resistance: Ductile iron can withstand sudden mechanical or hydraulic shocks.
Corrosion resistance: Its natural graphite structure provides inherent resistance to rusting, which can be further enhanced by coatings or linings.
Dimensional stability: Suitable for both cold and hot water applications due to minimal thermal expansion.
These characteristics make ductile iron butterfly valves ideal for dynamic operating environments—particularly in systems subject to vibration, fluctuating pressure, or temperature extremes.
A ductile iron butterfly valve consists of four key components: the valve body, disc, seat, and stem (shaft).
Body: The body, usually made from ductile iron, forms the main housing that connects to the pipeline via flanged, lug, or wafer-style ends. Its rigid structure provides the foundation for the internal moving parts.
Disc: The disc, also made from ductile iron or stainless steel, acts as the flow control element. When the disc is parallel to the flow, the valve is open; when perpendicular, it is closed.
Seat: The seat provides a sealing surface that prevents leakage when the valve is closed. Materials such as EPDM, NBR, PTFE, or Viton are commonly used depending on temperature and media compatibility.
Stem: The stem connects the actuator or handle to the disc, allowing precise rotation for throttling or shutoff.
The valve operates on a quarter-turn mechanism—a 90-degree rotation of the handle or actuator moves the disc from fully open to fully closed. Because of this design, butterfly valves offer quick actuation and minimal pressure drop, making them energy-efficient and convenient for automation.
When choosing a resilient-seated butterfly valve, one of the first decisions an engineer must make is whether to use cast iron or ductile iron as the valve body material. Both are iron-based alloys, but they differ in microstructure and performance characteristics.
Cast Iron (Gray Iron): Composed of 96–98% iron, 2–4% carbon, and small amounts of silicon. The carbon exists as flake graphite, which weakens the structure and makes it brittle.
Ductile Iron: Similar in base composition but modified with magnesium or cerium, which causes the graphite to form nodules rather than flakes. This dramatically improves toughness and flexibility.
Cast Iron: Traditionally used for class 125 and class 250 valves, with pressure ratings between 150–500 psi depending on size. While strong, it can crack under bending or impact.
Ductile Iron: Available in class 150 and class 300 ratings, with maximum working pressures of up to 640 psi. Ductile iron’s ability to bend rather than break makes it suitable for high-stress and high-pressure environments.
Cast Iron: Can withstand very high temperatures—up to 1150°C (2100°F)—making it suitable for high-heat systems.
Ductile Iron: Has a lower temperature tolerance, around 730°C (1350°F), but this is still more than sufficient for most water, steam, and air applications.
Ductile iron generally provides better corrosion resistance than cast iron, especially when combined with epoxy or fusion-bonded coatings. This makes ductile iron butterfly valves better suited for buried pipelines, marine environments, or chemically treated water.
While ductile iron is slightly more expensive than cast iron, the extended service life, reduced maintenance, and greater safety margin often justify the additional investment. In critical systems where reliability is non-negotiable, ductile iron is the superior choice.
The combination of strength, reliability, and affordability makes ductile iron butterfly valves extremely versatile. Some common applications include:
Ductile iron butterfly valves are widely used in municipal water supply networks due to their ability to handle large volumes of water under pressure. Their corrosion-resistant coatings make them ideal for buried or outdoor installations.
In wastewater systems, where solids and corrosive chemicals are often present, the durability and smooth operation of ductile iron valves ensure minimal flow obstruction and easy maintenance.
In heating, ventilation, and air conditioning systems, ductile iron butterfly valves control chilled or hot water flow. Their compact design makes them easy to install in mechanical rooms and building systems.
Their robust design allows them to handle the variable pressures and flow rates common in irrigation networks, ensuring reliable water management.
Ductile iron butterfly valves are integral to fire water mains, sprinkler systems, and hydrant lines, where they serve as reliable isolation valves. Their fast-acting operation is critical for emergency response systems.
From chemical plants to food and beverage facilities, ductile iron butterfly valves regulate water, air, and non-corrosive chemical flows with precision and minimal maintenance needs.
High Mechanical Strength: Capable of withstanding high internal pressures and external forces without cracking.
Excellent Durability: Resistant to fatigue and shock loads, making them ideal for high-cycle operations.
Corrosion Protection: Coatings such as epoxy resin or fusion-bonded epoxy (FBE) extend lifespan even in corrosive environments.
Compact and Lightweight Design: Requires less installation space compared to gate or globe valves.
Quick Operation: Quarter-turn design allows rapid opening and closing, essential in control and safety applications.
Tight Sealing: Rubber-lined or PTFE-lined seats ensure zero or near-zero leakage in both directions.
Low Maintenance: Fewer moving parts reduce wear and simplify upkeep.
Versatility: Suitable for both on-off service and throttling control.
Proper installation and maintenance are key to ensuring the long-term performance of ductile iron butterfly valves.
Ensure proper alignment of the valve between flanges to avoid stem stress.
Do not over-tighten flange bolts; this can distort the valve body or seat.
Always check for debris or burrs in the pipeline before installation.
Verify the valve’s operating direction and actuator settings before system startup.
Conduct regular visual inspections for leaks, corrosion, or seal wear.
Lubricate moving parts if recommended by the manufacturer.
Replace worn-out seats or seals promptly to maintain tight shutoff.
Operate the valve periodically to prevent sticking, especially in rarely used lines.
With proper maintenance, ductile iron butterfly valves can last 15 to 25 years or more, depending on service conditions.
Recent developments in valve engineering have enhanced the performance of ductile iron butterfly valves even further. Some of the innovations include:
Coatings and Linings: Advanced epoxy and ceramic coatings provide better resistance to corrosion, erosion, and chemical attack.
Automated Control: Integration with electric or pneumatic actuators allows remote operation and precise flow modulation.
Sealing Technology: Improved elastomer compounds extend sealing performance across a wider temperature range.
Smart Monitoring: Valves equipped with sensors and position indicators can relay operational data for predictive maintenance.
These improvements make ductile iron butterfly valves a critical component in modern smart water systems and industrial automation networks.
From a sustainability perspective, ductile iron butterfly valves contribute to resource efficiency and reduced environmental impact. The long service life minimizes material waste and the need for replacements. Additionally, the energy-efficient flow design reduces pumping costs and enhances overall system performance.
Economically, the low maintenance requirements and extended operational life result in a lower total cost of ownership (TCO). For municipalities, utilities, and industrial operators, this translates into significant long-term savings.
The ductile iron butterfly valve represents the perfect balance of strength, reliability, and cost-effectiveness. Its superior mechanical properties, corrosion resistance, and versatility make it an essential choice for applications ranging from water distribution to industrial process control. Compared to traditional cast iron valves, ductile iron models offer enhanced safety, performance, and longevity—key advantages for modern infrastructure and industrial systems.
As industries continue to evolve toward smarter and more sustainable fluid control technologies, ductile iron butterfly valves remain a cornerstone of durable engineering. Their proven track record and continuous technological improvements ensure they will continue to play a vital role in achieving efficient, safe, and reliable flow management for decades to come.
